Automatic Transmission Seal Kit (4 of 6)
WARNING: This page is about a different variant/trim than selected.
NOTE:

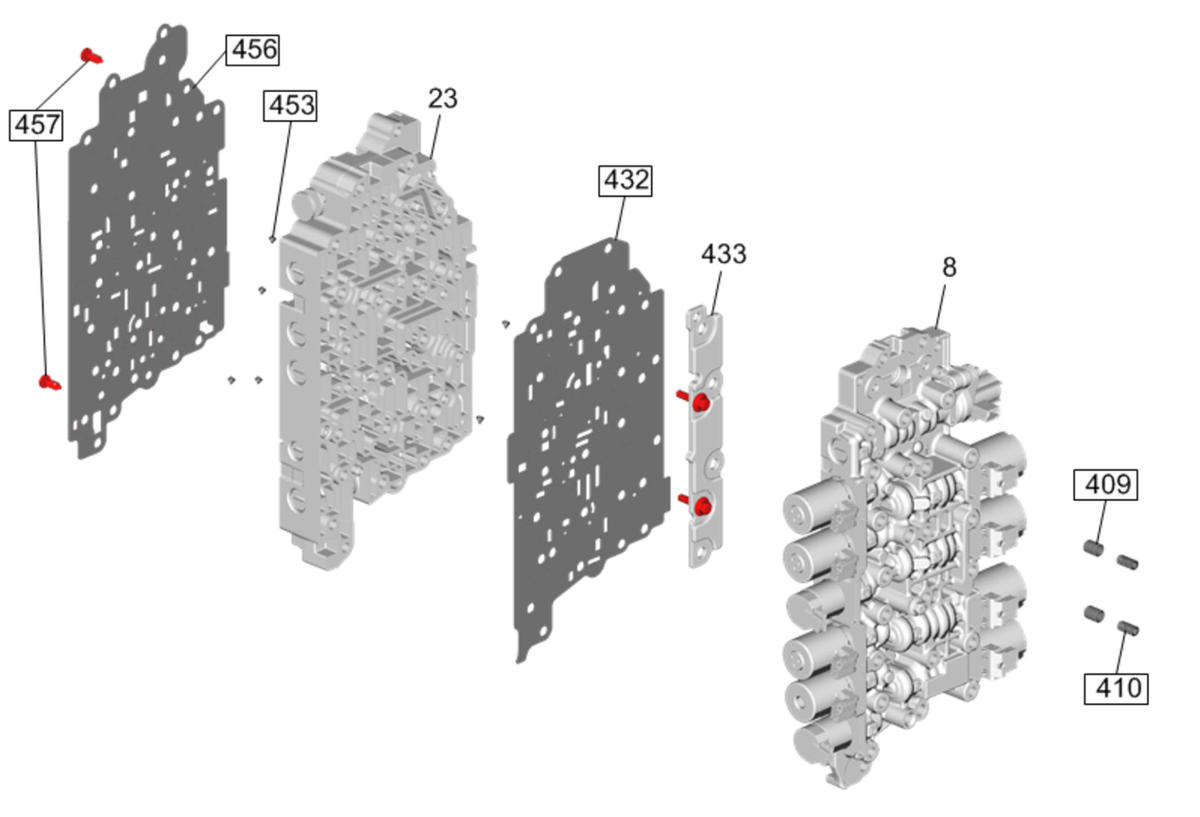

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
Automatic Transmission Seal Kit (4 of 6)
| Callout | Quantity | Component Name |
|---|---|---|
| 409 | 2 | Variable Feed Solenoid Clutch Accumulator Piston Spring |
| 410 | 2 | Variable Feed Solenoid Clutch Accumulator Piston |
| 432 | 1 | Control Valve Body Spacer Plate |
| 453 | QTY | Control Valve Body Ball Check Valve - Model Dependent |
| 456 | 1 | Control Valve Body Spacer Plate |
| 457 | 2 | Control Valve Body Spacer Plate Retainer |
