Automatic Transmission Seal Kit (2 of 6)
WARNING: This page is about a different variant/trim than selected.
NOTE:

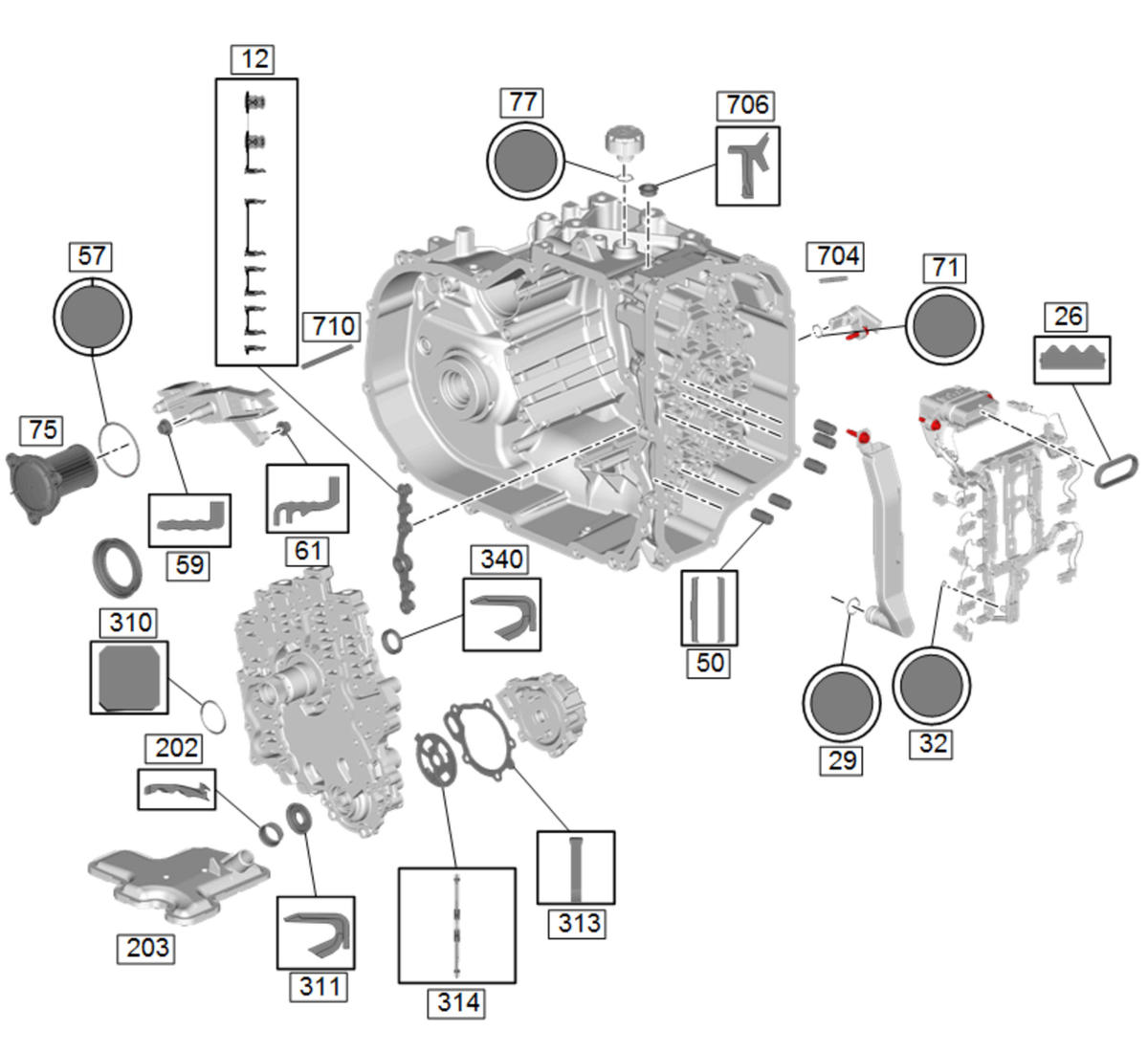

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
Automatic Transmission Seal Kit (2 of 6)
| Callout | Quantity | Component Name |
|---|---|---|
| 12 | 1 | Automatic Transmission Fluid Pump Seal |
| 26 | 1 | Body Side Wiring Harness Opening Seal |
| 29 | 1 | Fluid Transfer Pipe Seal |
| 32 | 1 | Automatic Transmission Fluid Temperature Sensor Seal |
| 50 | 5 | 1-2-3-4 Low and Reverse Clutch Fluid Passage Seal |
| 57 | 1 | Automatic Transmission Fluid Filter Cap Seal |
| 59 | 1 | Drive Link Lubricant Fluid Seal |
| 61 | 1 | Drive Link Lubricant Fluid Seal |
| 71 | 1 | Automatic Transmission Input Speed Sensor Seal - O-Ring |
| 75 | 1 | Automatic Transmission Fluid Filter |
| 77 | 1 | Automatic Transmission Fluid Filter Cap Seal |
| 202 | 1 | Automatic Transmission Fluid Filter Seal |
| 203 | 1 | Automatic Transmission Fluid Filter |
| 310 | 1 | Torque Converter Fluid Seal Ring |
| 311 | 1 | Automatic Transmission Fluid Pump Shaft Seal |
| 313 | 1 | Automatic Transmission Fluid Pump Gasket |
| 314 | 1 | Automatic Transmission Fluid Pump Pressure Plate Seal |
| 340 | 1 | Stator Shaft Seal |
| 704 | 1 | Park Pawl Actuator Guide Pin |
| 706 | 1 | Manual Shift Shaft Seal |
| 710 | 1 | Manual Shift Detent Lever Pin |
