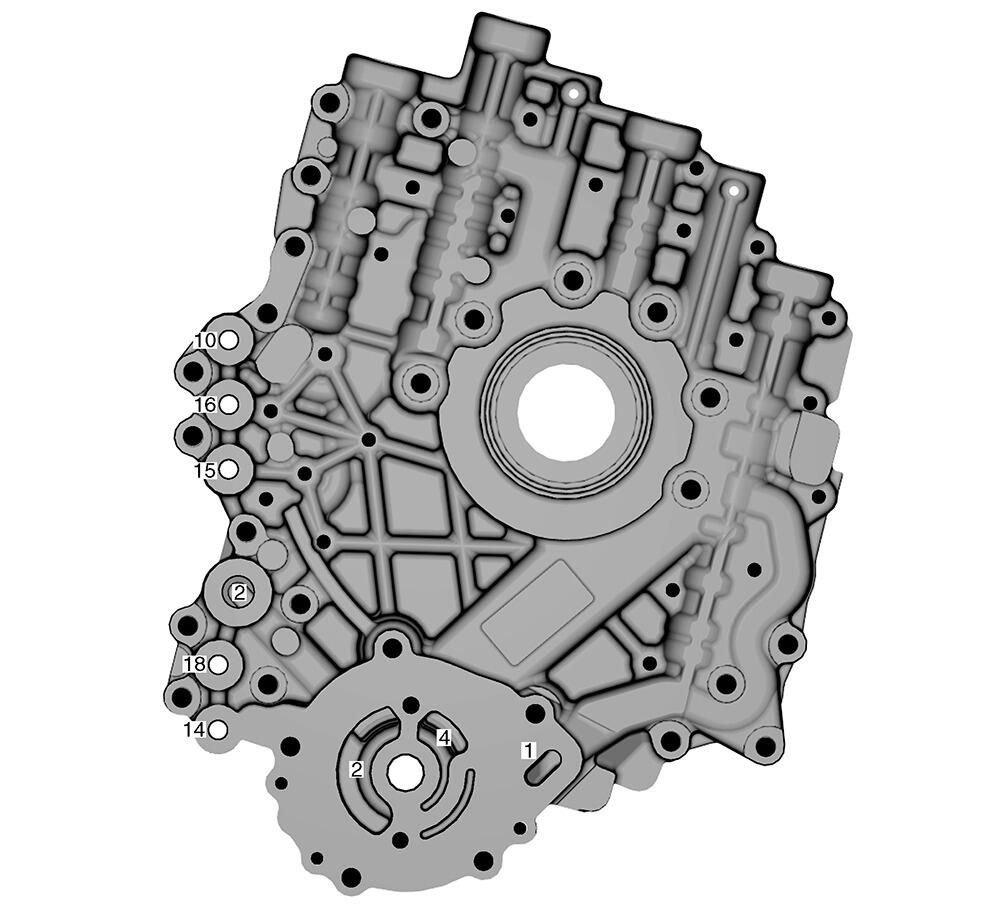

Drive Sprocket Support - Automatic Transmission Fluid Pump Side
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
Suction |
| 2 |
Line |
| 4 |
Secondary Line |
| 10 |
Cooler Feed |
| 14 |
Line VFS |
| 15 |
TCC VFS |
| 16 |
Clutch Select Solenoid |
| 18 |
Drive 2 |
