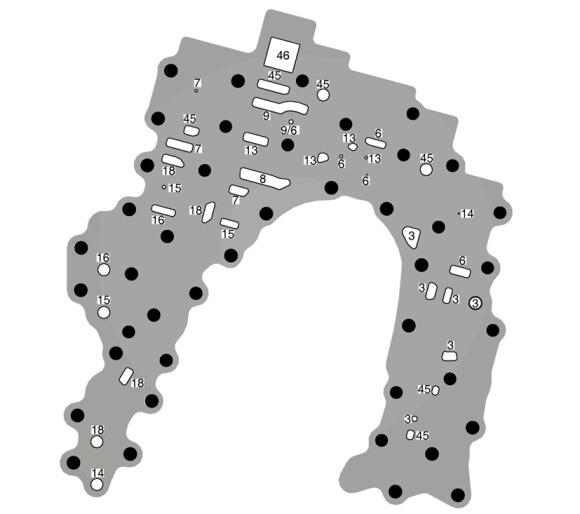

Auxiliary Control Valve Body Spacer Plate - Drive Sprocket Support Side
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 3 |
Primary Line |
| 4 |
Secondary Line |
| 5 |
Bypass |
| 6 |
Converter Feed |
| 7 |
Regulator Apply |
| 8 |
TCC Apply |
| 9 |
TCC Release |
| 13 |
Cooler/Lube |
| 14 |
Line VFS |
| 15 |
TCC VFS |
| 16 |
Clutch Select Solenoid |
| 18 |
Drive 2 |
| 45 |
Exhaust |
| 46 |
Void |
