Automatic Transmission Fluid Pump - Drive Sprocket Support Side

WARNING: This page is about a different variant/trim than selected.

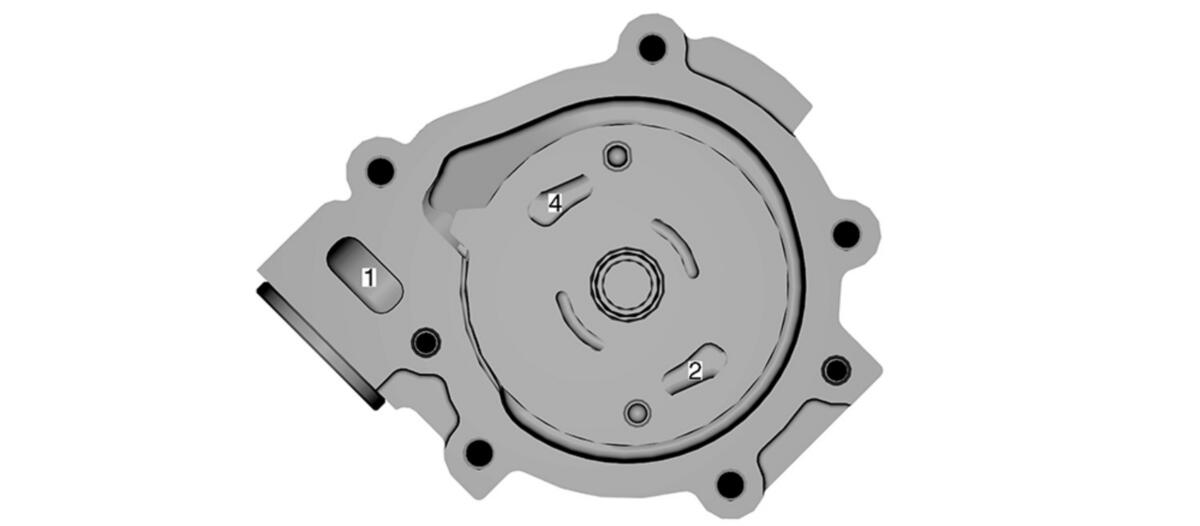

Fig 1: Automatic Transmission Fluid Pump - Drive Sprocket Support Side
GM4508273Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Suction
2 Line
4 Secondary Line
