Section 13 (Hybrid/EV Control System)
>>
Schematic Wiring Diagrams
>>
Hybrid/EV Controls Wiring Schematics
>>
Drive Motors and Auxiliary Transmission Fluid Pump Controls
Drive Motors and Auxiliary Transmission Fluid Pump Controls
WARNING:
This page is about a different variant/trim than selected.

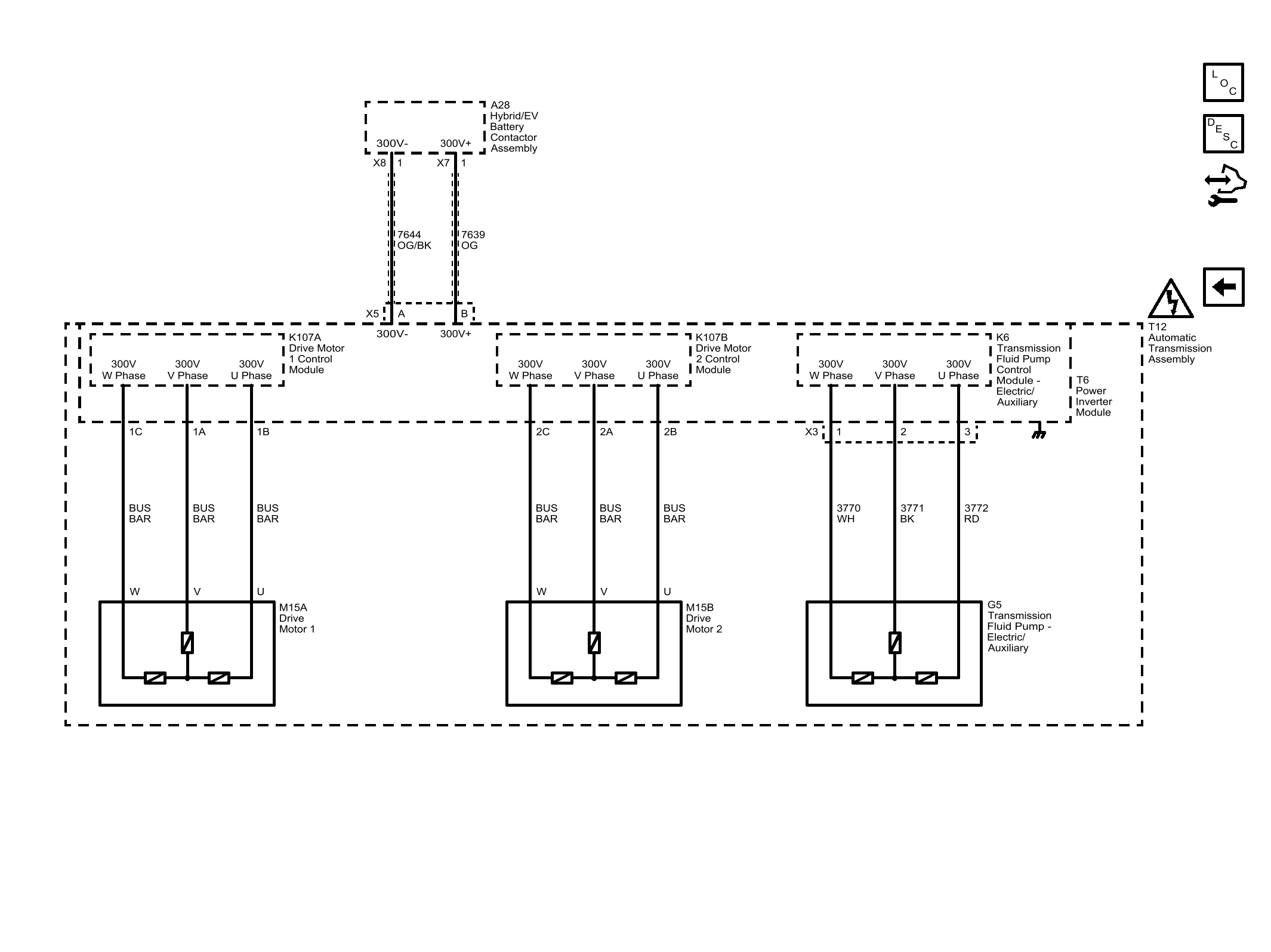

Fig 1: Drive Motors and Auxiliary Transmission Fluid Pump Controls
Courtesy of GENERAL MOTORS COMPANY
