Drive Motor Monitoring
Drive Motor Monitoring
WARNING:
This page is about a different variant/trim than selected.

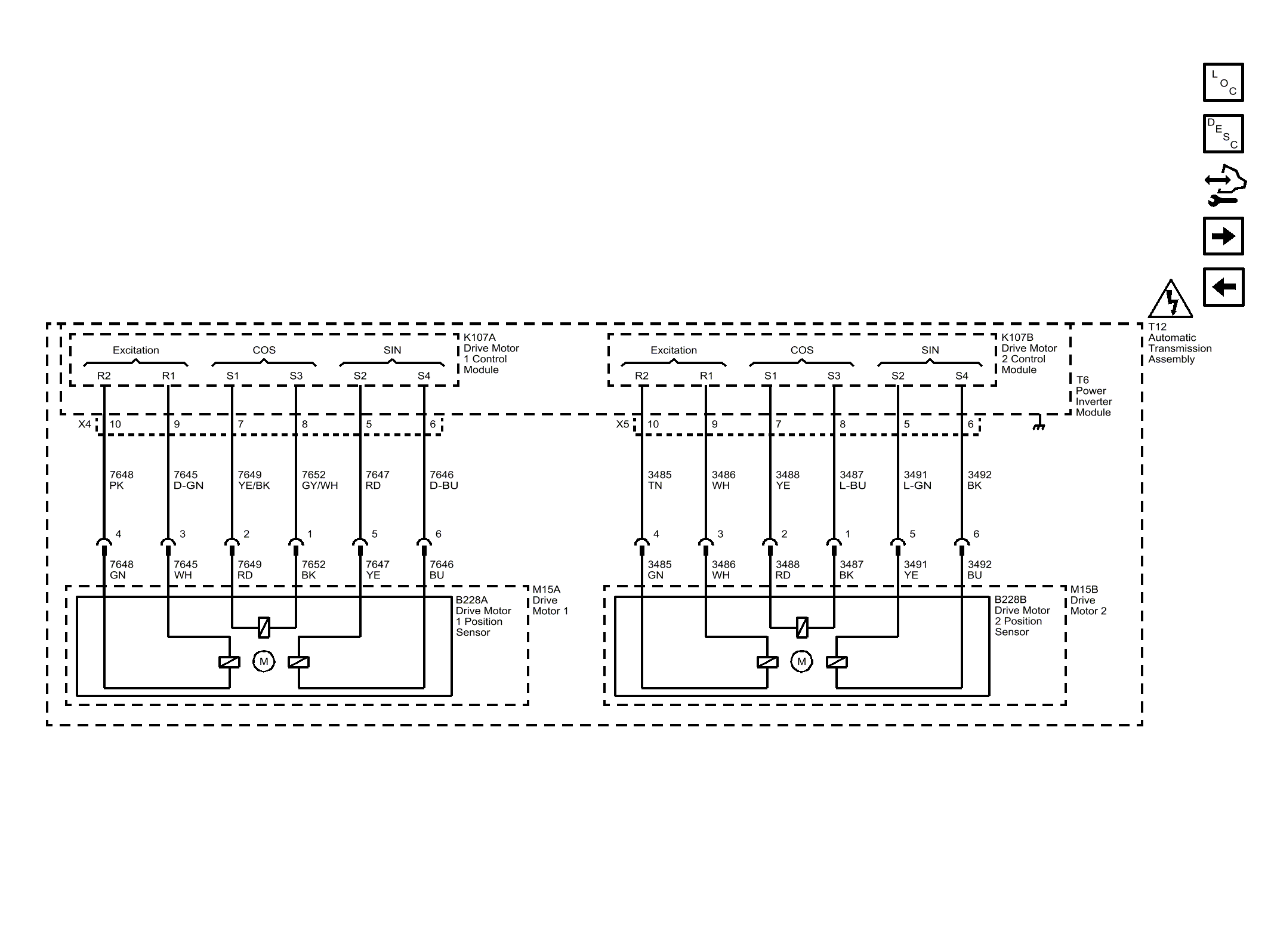

Fig 1: Drive Motor Monitoring
Courtesy of GENERAL MOTORS COMPANY
