Section 12 (Antilock Brake System - Hybrid)
>>
Schematic Wiring Diagrams
>>
Antilock Brake System Wiring Schematics
>>
Wheel Speed Sensors
Wheel Speed Sensors
WARNING:
This page is about a different variant/trim than selected.

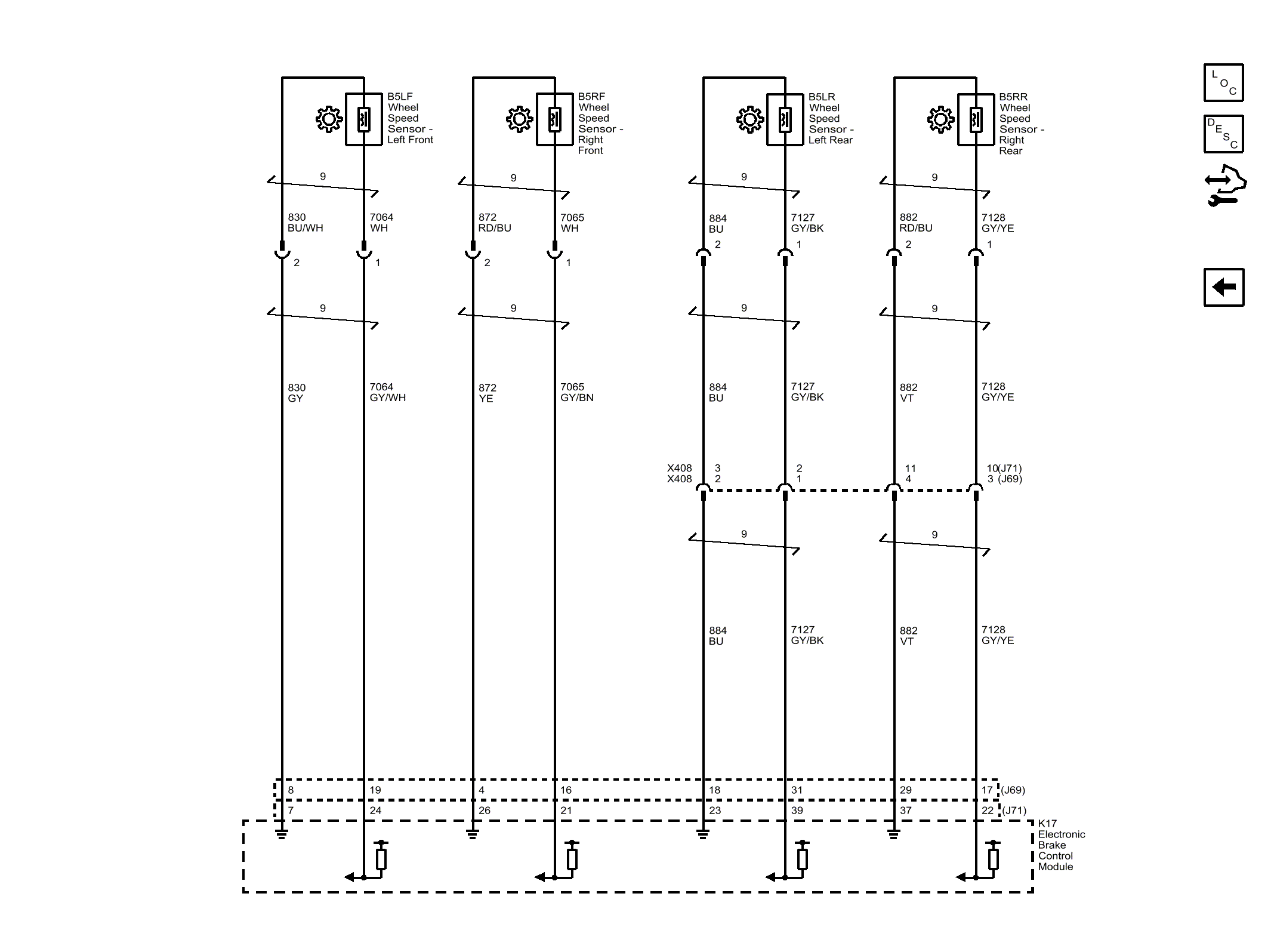

Fig 1: Wheel Speed Sensors
Courtesy of GENERAL MOTORS COMPANY
