Section 12 (Antilock Brake System - Hybrid)
>>
Schematic Wiring Diagrams
>>
Antilock Brake System Wiring Schematics
>>
Power, Ground, Serial Data, Traction Control and References
Power, Ground, Serial Data, Traction Control and References
WARNING:
This page is about a different variant/trim than selected.

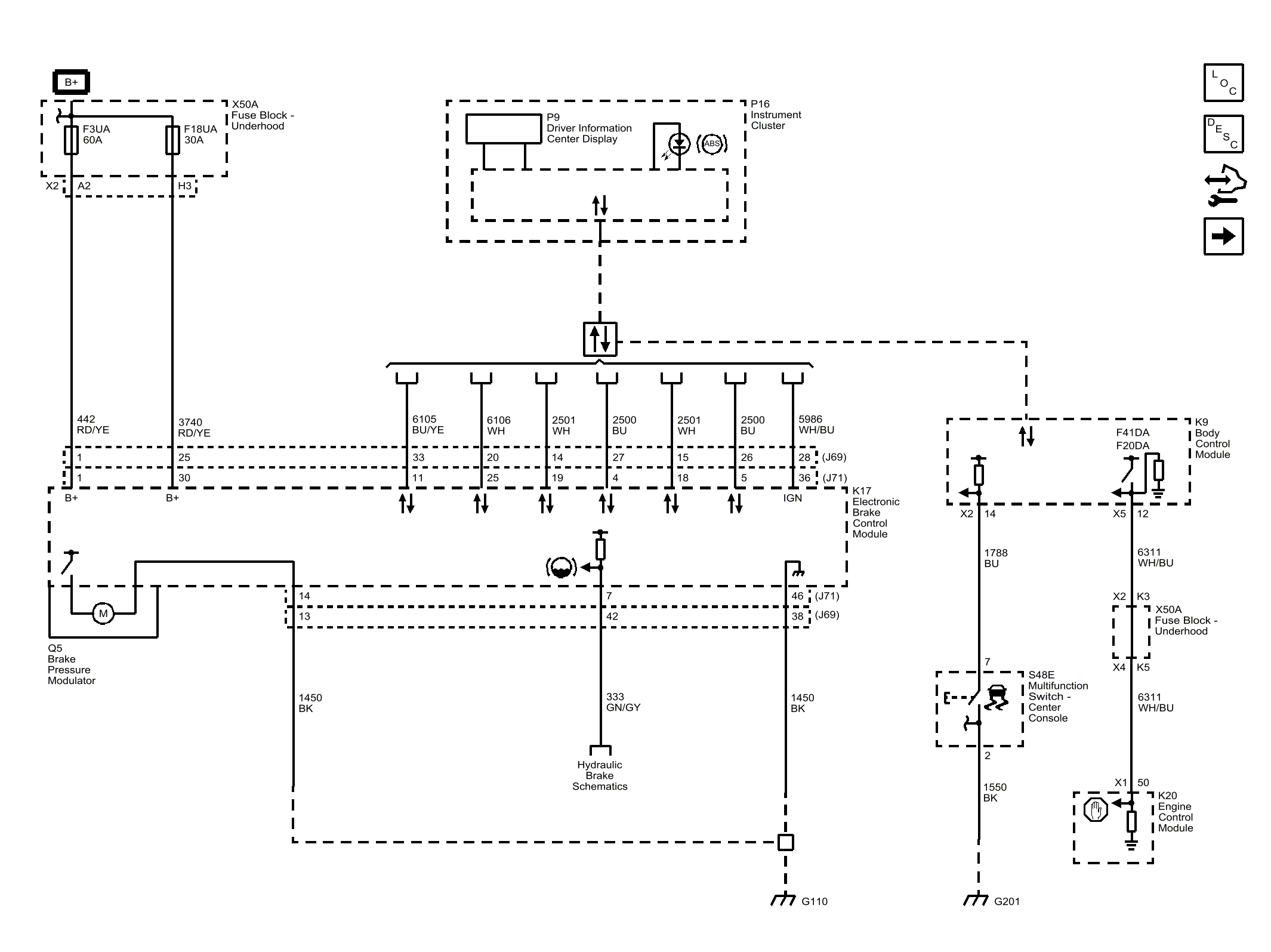

Fig 1: Power, Ground, Serial Data, Traction Control and References
Courtesy of GENERAL MOTORS COMPANY
