Installation Procedure

WARNING: This page is about a different variant/trim than selected.

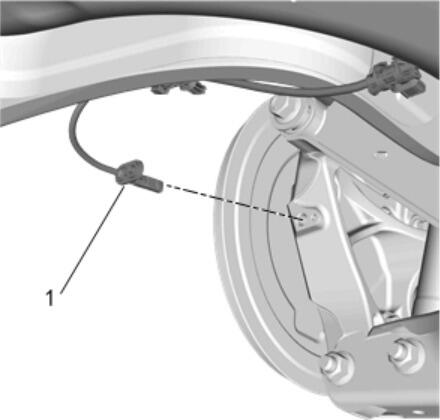

Wheel Speed Sensor (1) - Install

Fig 1: Wheel Speed Sensor
Courtesy of GENERAL MOTORS COMPANY

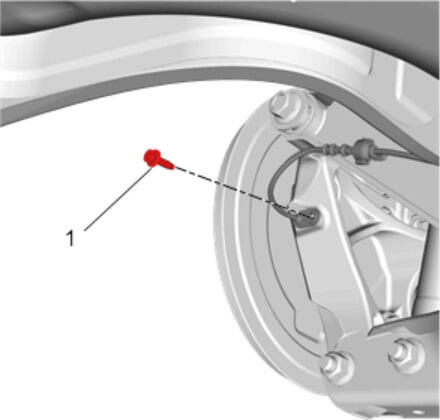

Wheel Speed Sensor Bolt (1) - Install and tighten 9 N.m (80 lb in)

Fig 2: Wheel Speed Sensor Bolt
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Fastener Caution

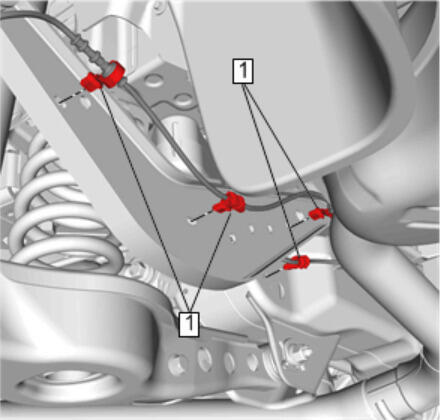

Retainer (1) @ Upper Control Arm - Secure [4x]

Fig 3: Upper Control Arm Retainer
Courtesy of GENERAL MOTORS COMPANY

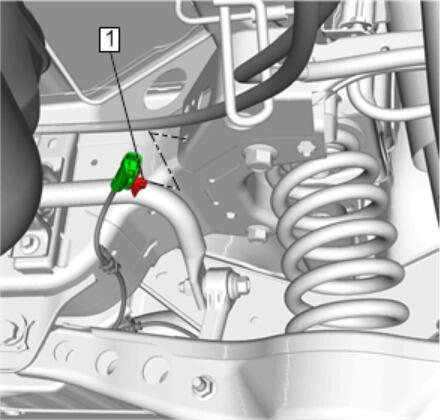

Retainer (1) @ Rear Suspension Cradle - Secure

Fig 4: Rear Suspension Cradle Retainer
Courtesy of GENERAL MOTORS COMPANY

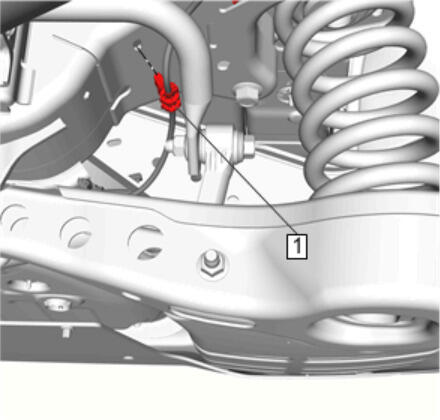

Retainer (1) @ Rear Suspension Cradle - Secure

Fig 5: Rear Suspension Cradle Retainer
Courtesy of GENERAL MOTORS COMPANY
Wheel Speed Sensor Electrical Connector - Connect
Verify the repair is complete. Refer to Diagnostic Repair Verification
