Removal Procedure

WARNING: This page is about a different variant/trim than selected.
WARNING: Brake Dust Warning
  1. Front Wheelhouse Liner Replacement - Remove
  2. Wheel Speed Sensor Electrical Connector - Disconnect

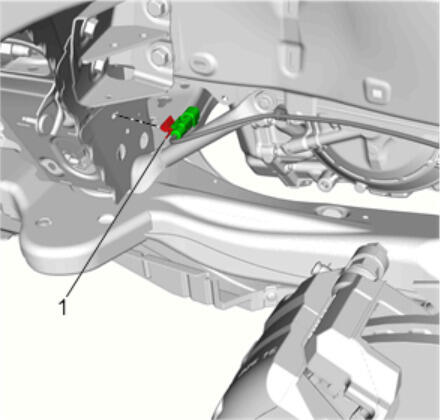

  3. Retainer (1) @ Radiator Support - Release
    Fig 1: Radiator Support Retainer
    GM4213876Courtesy of GENERAL MOTORS COMPANY

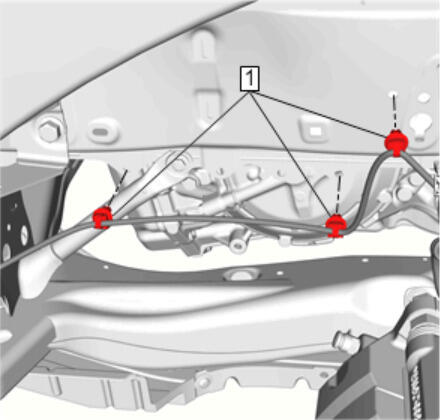

  4. Retainer (1) @ Side Rail - Release [3x]
    Fig 2: Side Rail Retainer
    GM4213880Courtesy of GENERAL MOTORS COMPANY

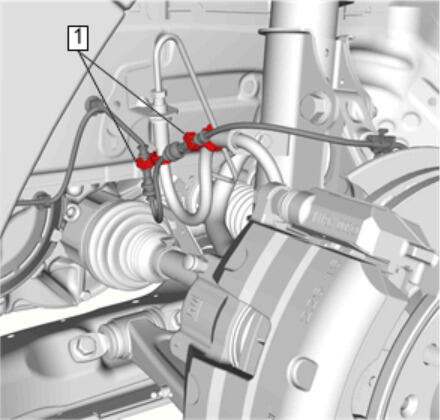

  5. Retainer (1) @ Front Brake Hose - Release [2x]
    Fig 3: Front Brake Hose Retainer
    GM4213881Courtesy of GENERAL MOTORS COMPANY

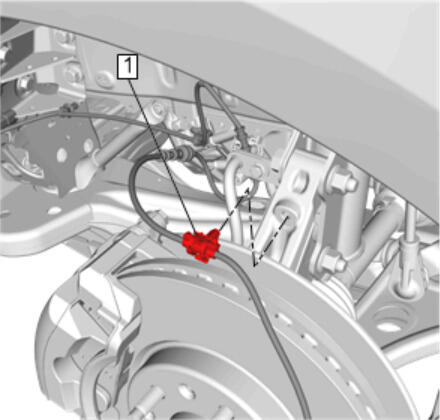

  6. Retainer (1) @ Steering Knuckle - Release
    Fig 4: Steering Knuckle Retainer
    GM4214174Courtesy of GENERAL MOTORS COMPANY

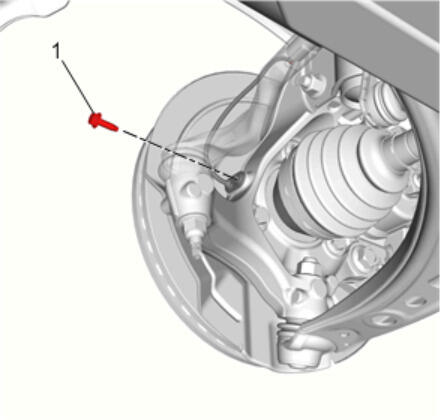

  7. Wheel Speed Sensor Bolt (1) - Remove
    Fig 5: Wheel Speed Sensor Bolt
    GM4214175Courtesy of GENERAL MOTORS COMPANY

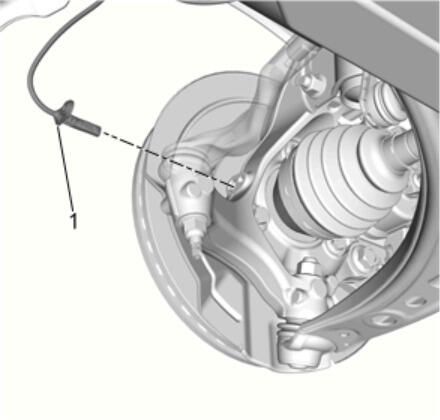

  8. Wheel Speed Sensor (1) - Remove
    Fig 6: Wheel Speed Sensor
    GM4214177Courtesy of GENERAL MOTORS COMPANY
