Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Electronic Brake Control Module with Brake Pressure Modulator Valve - Remove Electronic Brake Control Module with Brake Pressure Modulator Valve Replacement
  2. Brake Pressure Modulator Valve Nut (1) - Remove

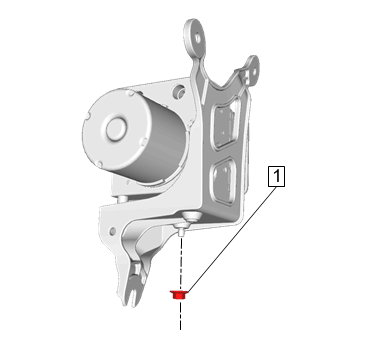

    Fig 1: Brake Pressure Modulator Valve Nut
    GM4318411Courtesy of GENERAL MOTORS COMPANY
  3. Brake Pressure Modulator Valve Bracket (1) - Remove
    Fig 2: Brake Pressure Modulator Valve Bracket
    GM4318412Courtesy of GENERAL MOTORS COMPANY
