Evaporative Emission Canister Purge Tube Replacement (Purge Solenoid Valve to Evaporative Emission Front Pipe)

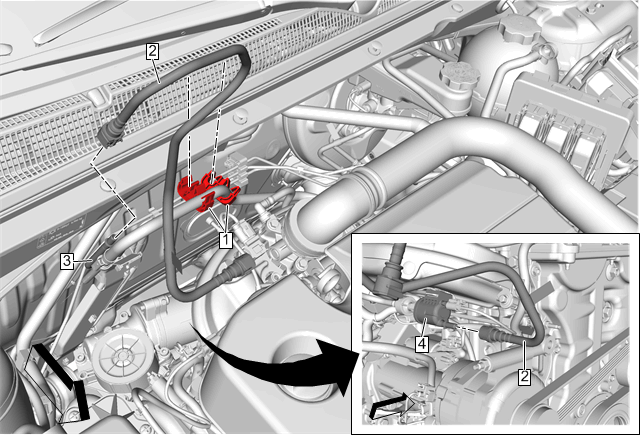

Fig 1: Evaporative Emission Canister Purge Tube (Purge Solenoid Valve to Evaporative Emission Front Pipe)
| Callout | Component Name |
|---|---|
| 1 | Fuel Feed Evaporative Emission Separator Pipe Clip [2x] |
| 2 | Evaporative Emission Canister Purge Tube Procedure Plastic Collar Quick Connect Fitting Service |
| 3 | Evaporative Emission Front Pipe |
| 4 | Evaporative Emission Canister Purge Solenoid Valve |
