Air Cleaner Outlet Duct Replacement

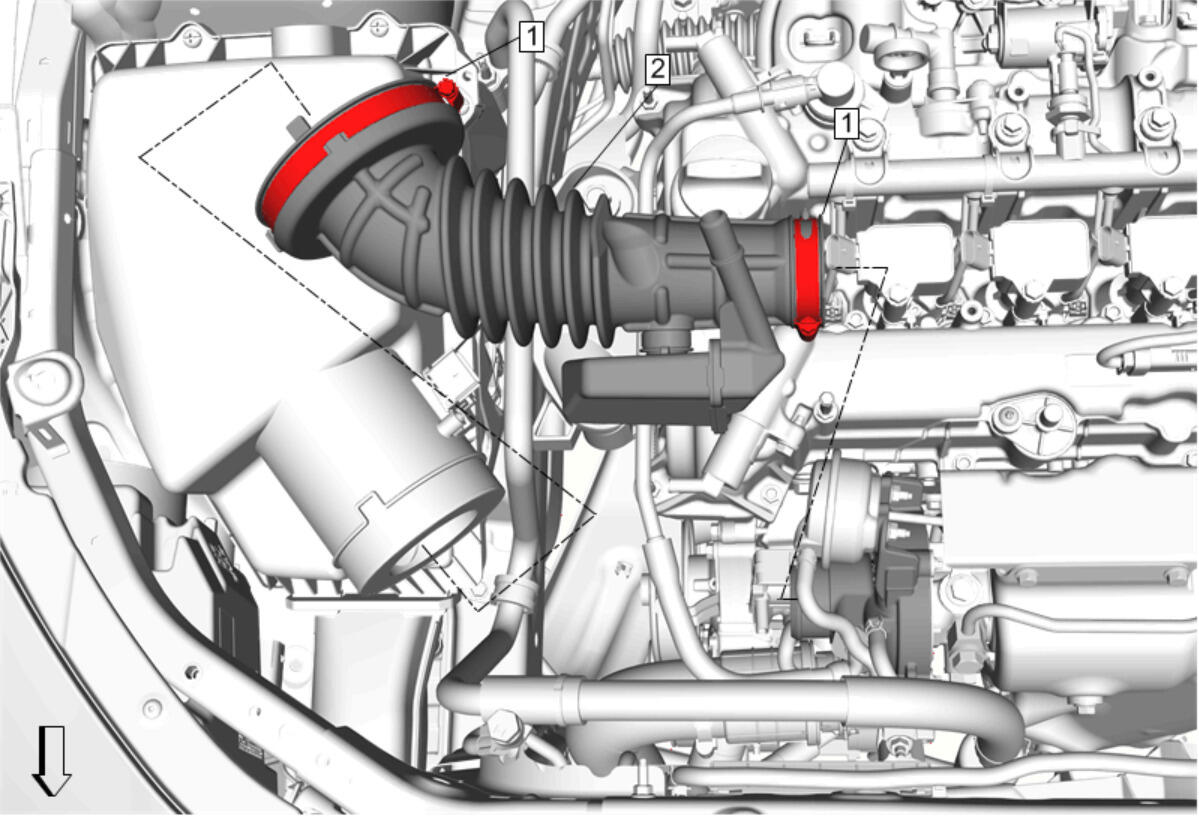

| Callout | Component Name |
|---|---|
| Preliminary Procedure Positive Crankcase Ventilation Tube Replacement (Fresh Air)Positive Crankcase Ventilation Tube Replacement (Foul Air) |
|
| 1 | Air Cleaner Outlet Duct Clamp [2x]
CAUTION:
Refer to Fastener Caution
.
NOTE:
Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under. Tighten 4 N.m (35 lb in) |
| 2 | Air Cleaner Outlet Duct |
