Battery Current Sensor Replacement

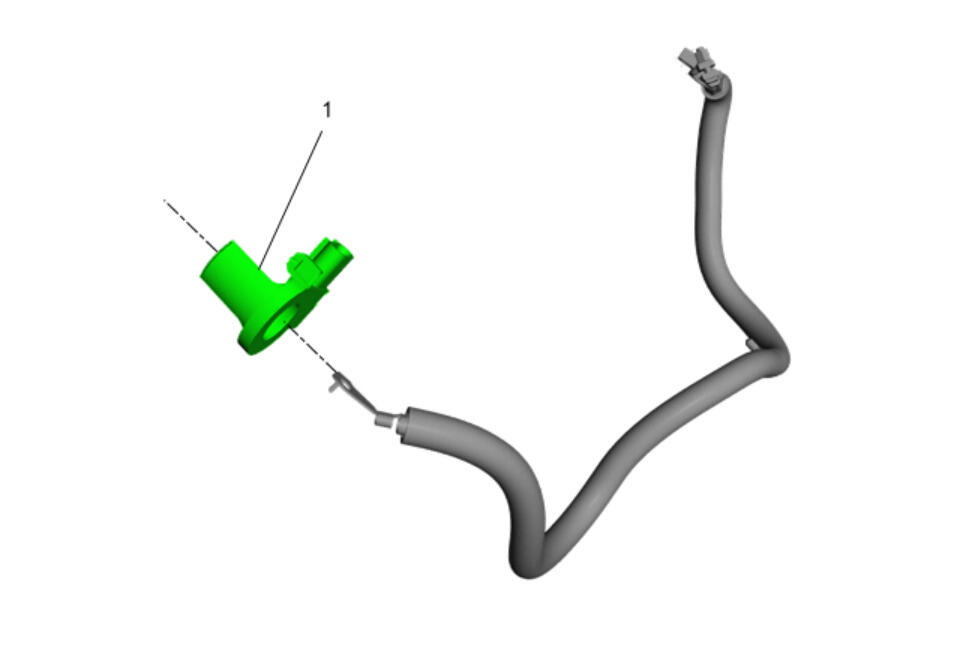

Fig 1: Battery Current Sensor
GM4231174Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Battery Negative Cable Replacement (LFV) Battery Negative Cable Replacement (LTG)  - Remove
1 Battery Current Sensor
NOTE: Note the orientation of the battery current sensor prior to removal.
