Exhaust Rear Bracket Replacement (LKN)

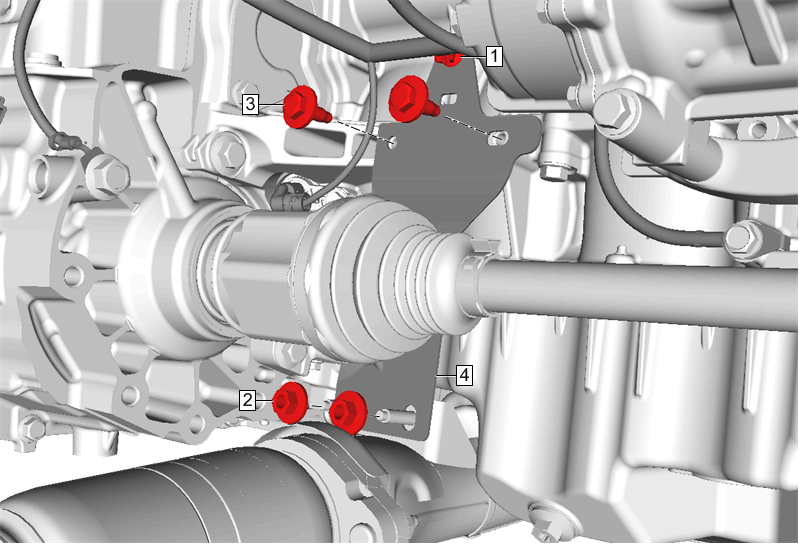

| Callout | Component Name |
|---|---|
|
WARNING:
In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.
WARNING:
Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle |
|
| 1 | Wiring Harness Retainer |
| 2 | Exhaust Rear Bracket Nut [2x]
CAUTION:
Refer to Fastener Caution
. Tighten 22 N.m (16 lb ft) |
| 3 | Exhaust Rear Bracket Bolt [2x] Tighten 22 N.m (16 lb ft) |
| 4 | Exhaust Rear Bracket |
