Turbocharger Heat Shield Replacement

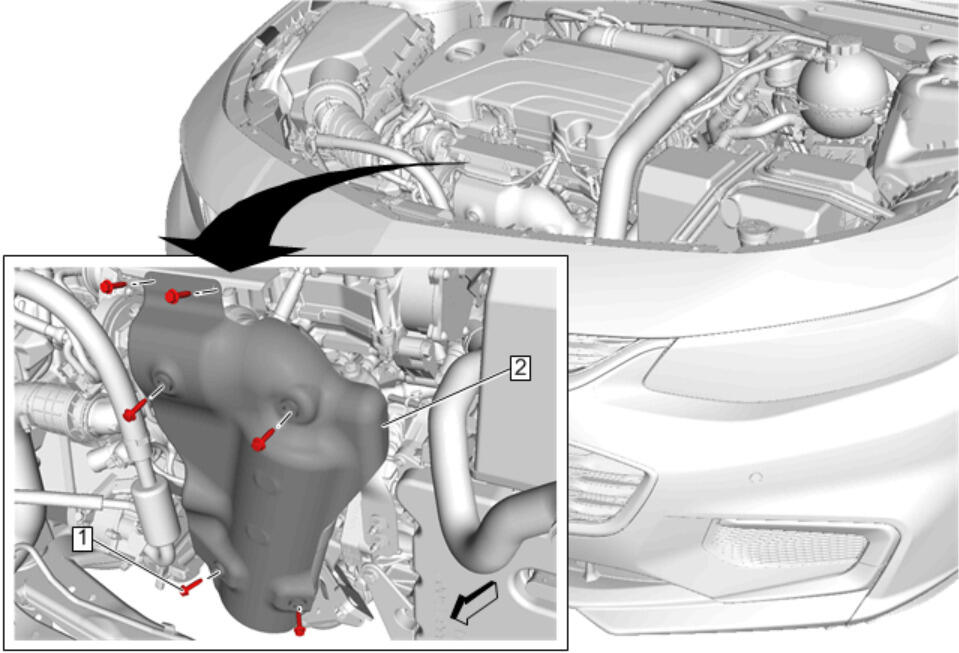

Fig 1: Turbocharger Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Turbocharger Coolant Return Pipe Replacement (LFV)
1	Turbocharger Heat Shield Bolt [6x] CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Turbocharger Heat Shield
