Intake Manifold Cover Replacement

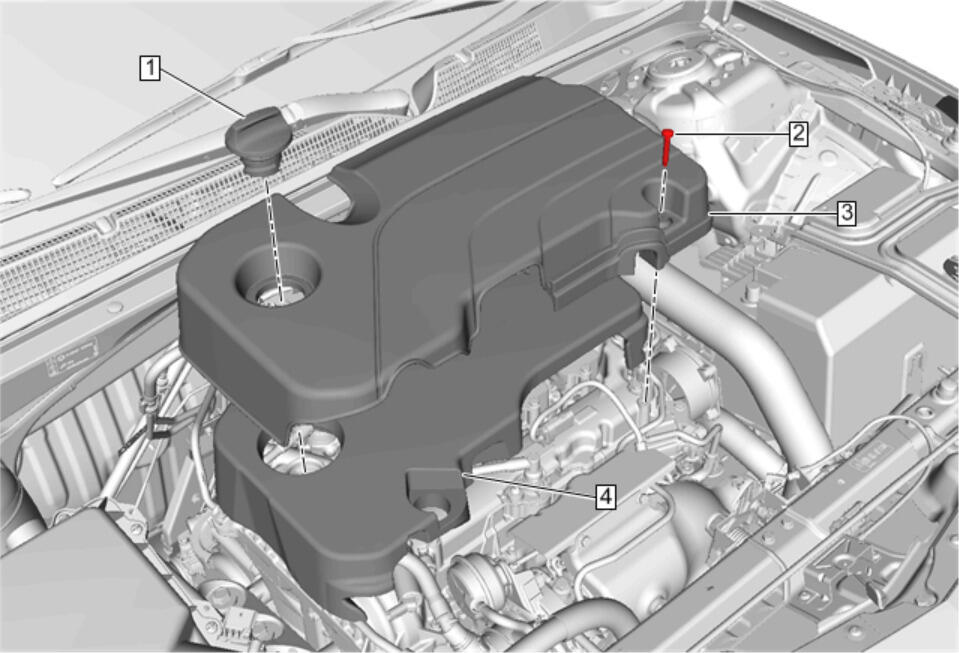

Fig 1: Intake Manifold Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Oil Cap Procedure Remove the oil fill cap.
2	Intake Manifold Cover Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
3	Intake Manifold Cover Procedure Pull the intake manifold cover upward to remove.
4	Intake Manifold Insulator
