Engine Coolant Thermostat Housing Replacement (LTG)

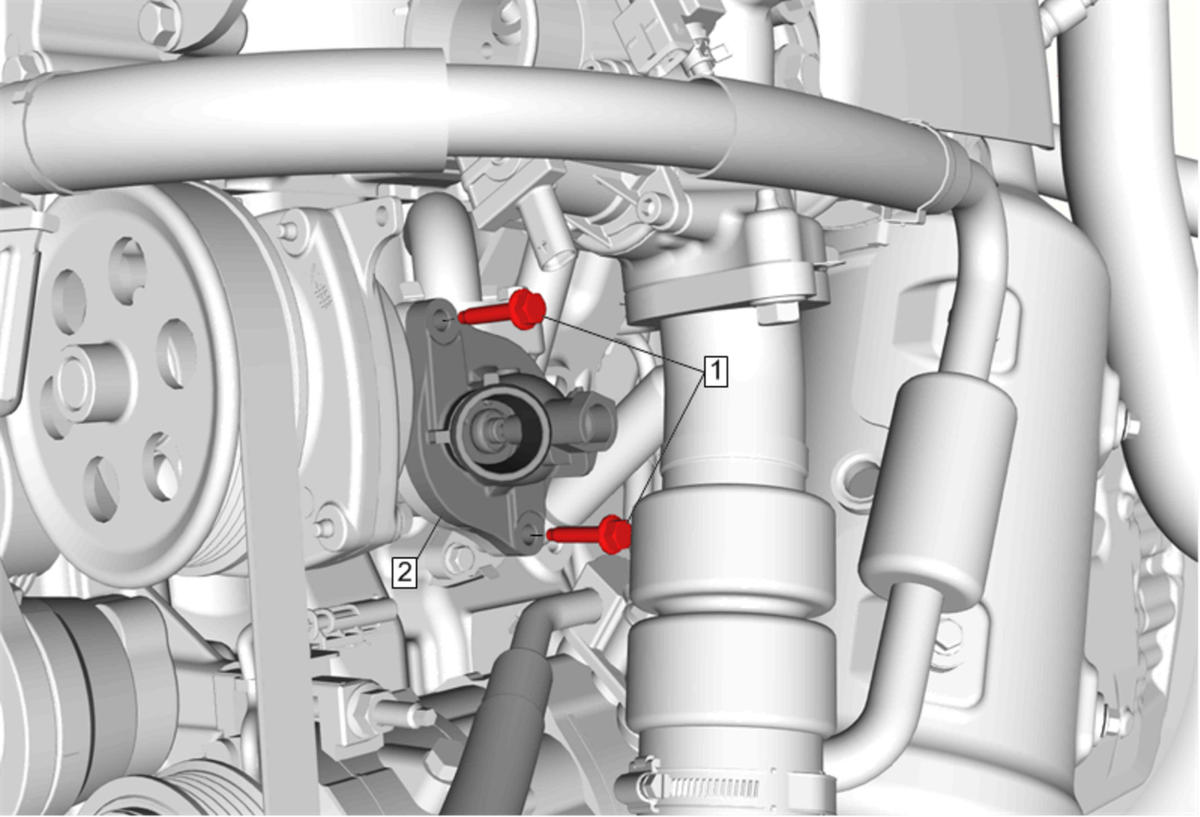

Fig 1: Engine Coolant Thermostat Housing (LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Radiator Outlet Hose Replacement (LTG)
1	Engine Coolant Thermostat Housing Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Engine Coolant Thermostat Housing Procedure  Install a NEW engine coolant thermostat housing seal.
