Turbocharger Air Pressure Sensor Replacement

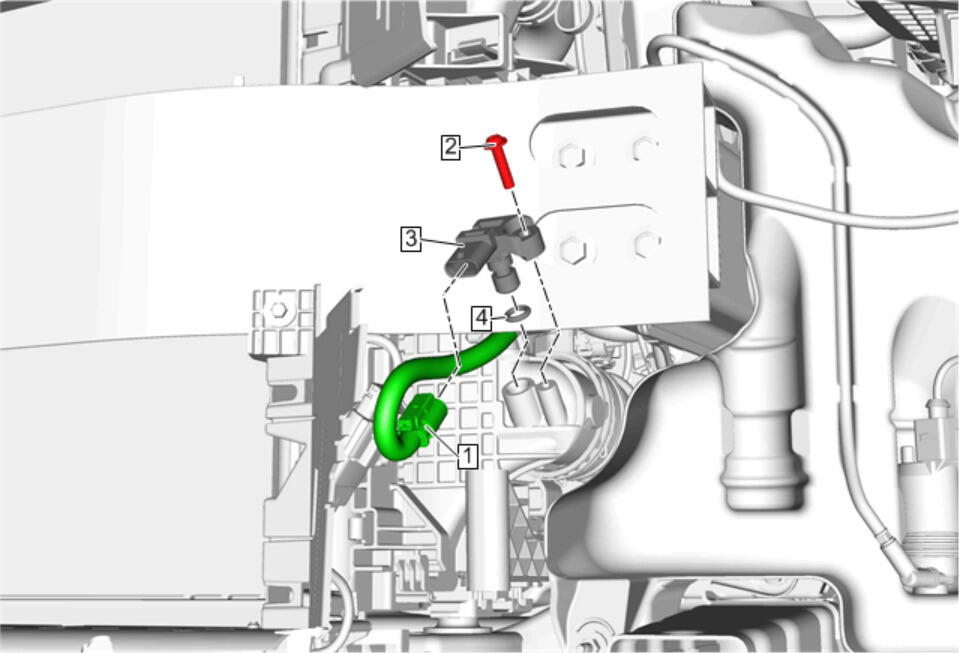

Fig 1: Turbocharger Air Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Replacement
1	Electrical Connector
2	Turbocharger Inlet Absolute Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
3	Turbocharger Inlet Absolute Pressure Sensor
4	Turbocharger Inlet Absolute Pressure Sensor Seal Procedure  Install a NEW O-ring seal.
