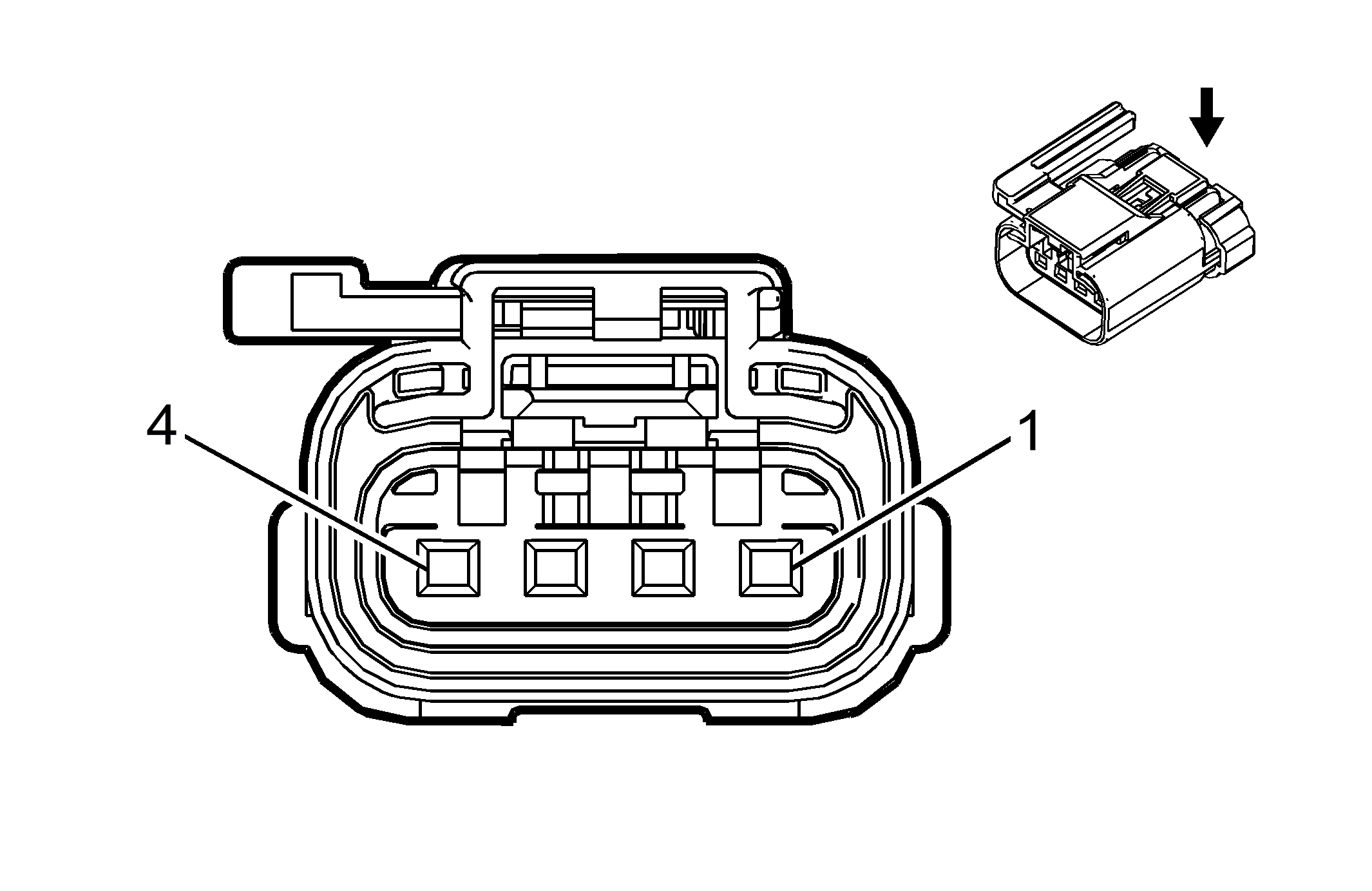

G10 Cooling Fan Motor (LKN)
|
|
Connector Part Information
- Harness Type: Cooling Fan
- OEM Connector: 13860248
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 2.8 APEX Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
4 |
BK |
1250 |
Ground |
II |
- |
| 2 |
4 |
RD/BN |
702 |
Battery Positive Voltage |
II |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
WH/BK |
2366 |
Cooling Fan Control Relay Speed Signal |
I |
- |
