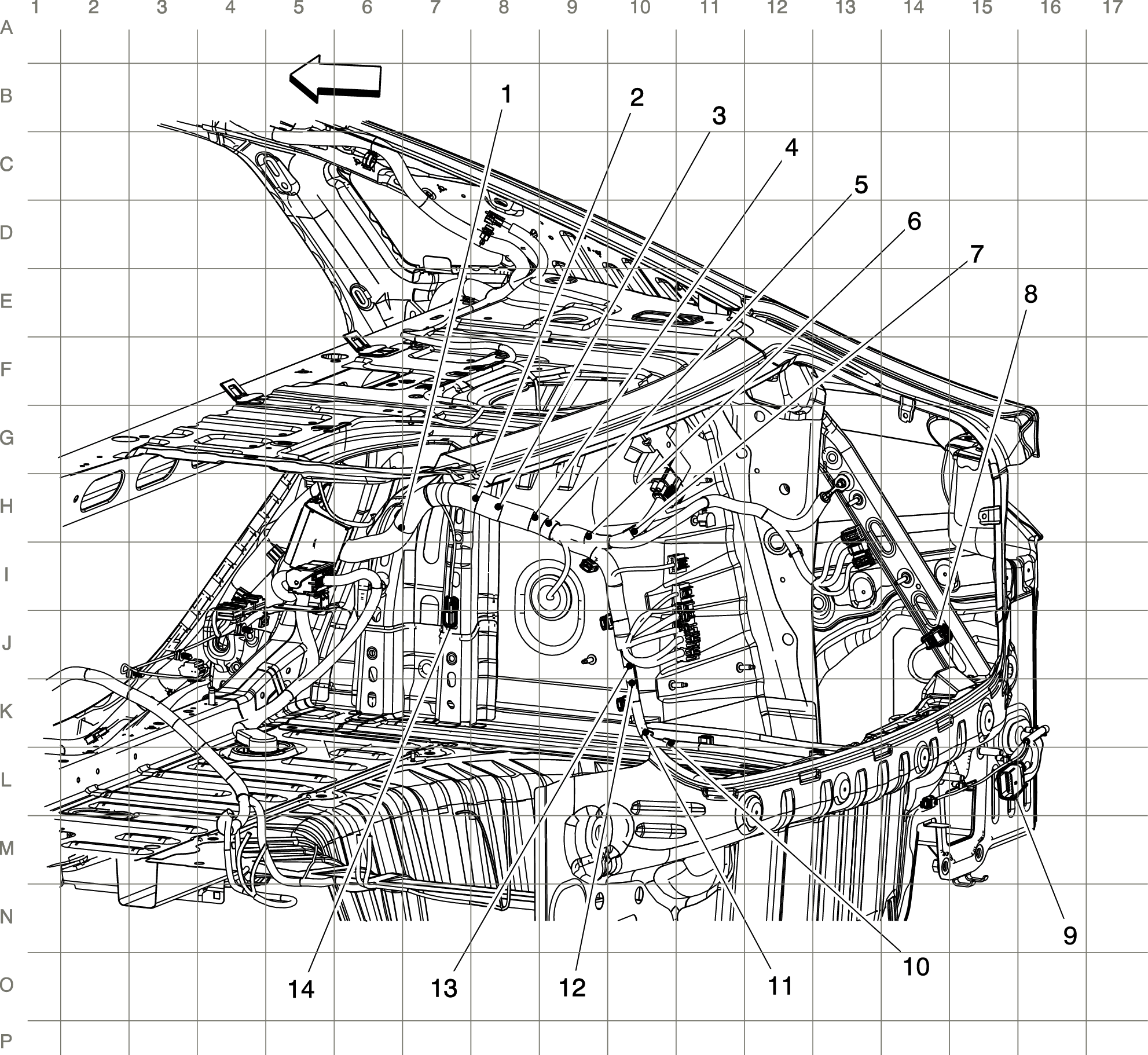

Body Harness Routing - Rear Compartment - Right Side
| Items |
|---|
| J403 |
| J404 (J71) |
| J405 (J71) |
| J406 (J71) |
| J407 (J71) |
| J410 |
| J411 |
| X420 X420 Tail Lamp - Right Harness to Body Harness (-UGE) X420 Tail Lamp - Right Harness to Body Harness (UGE) |
| X404 X404 Rear Bumper Harness to Body Harness |
| J413 |
| J412 |
| J409 |
| J408 |
| X407 (HP4) X407 Keyless Entry Antenna Harness to Body Harness (HP4) |
