Body Harness Routing - Rear Compartment - Left Side

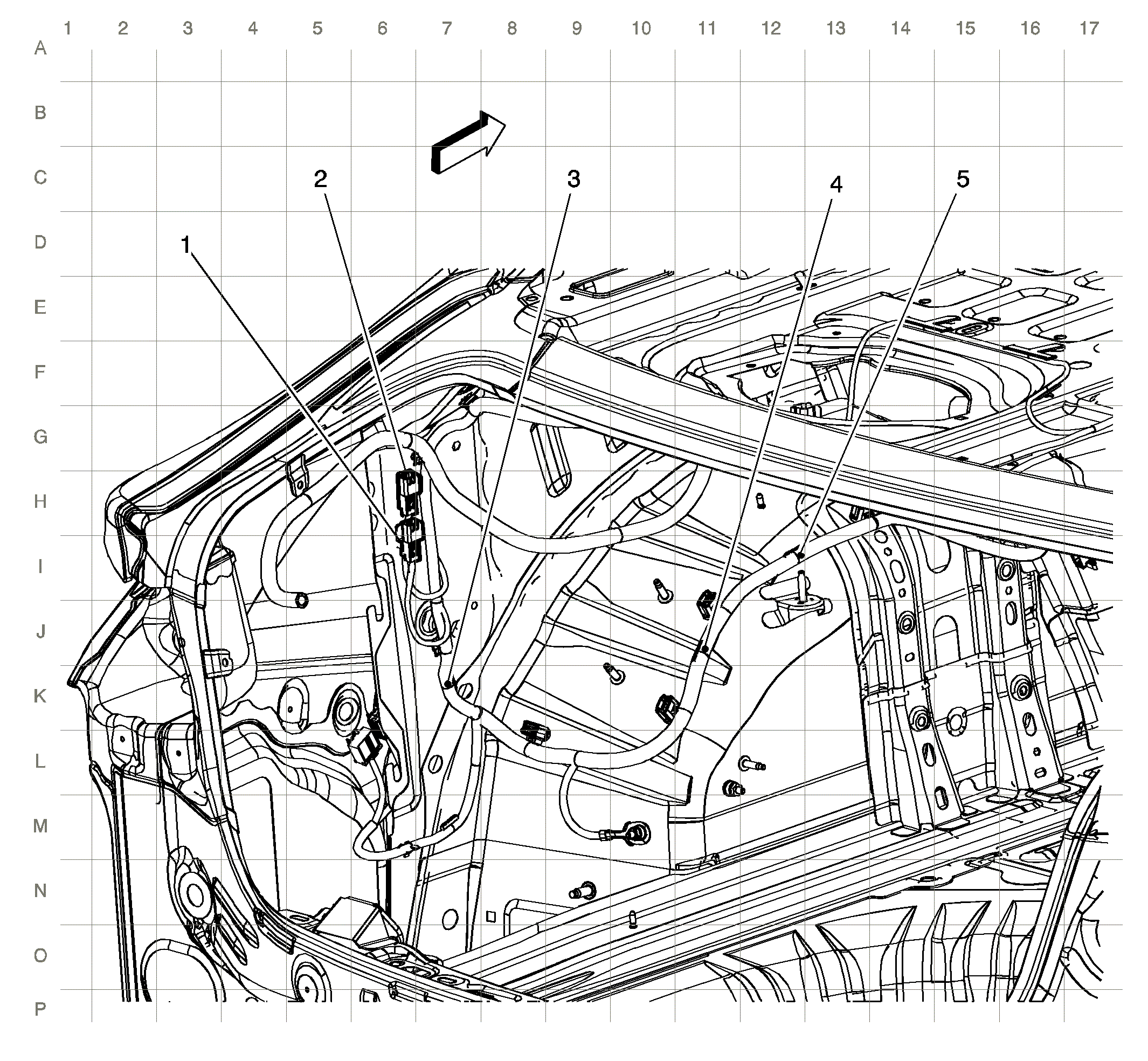

Fig 1: Body Harness Routing - Rear Compartment - Left Side
GM4230133Courtesy of GENERAL MOTORS COMPANY
Items
X910
X410 X410 Tail Lamp - Left Harness to Body Harness (-UGE)
J343
J401
J400
