Body Harness Routing - Passenger Compartment - Left Front (HP4)

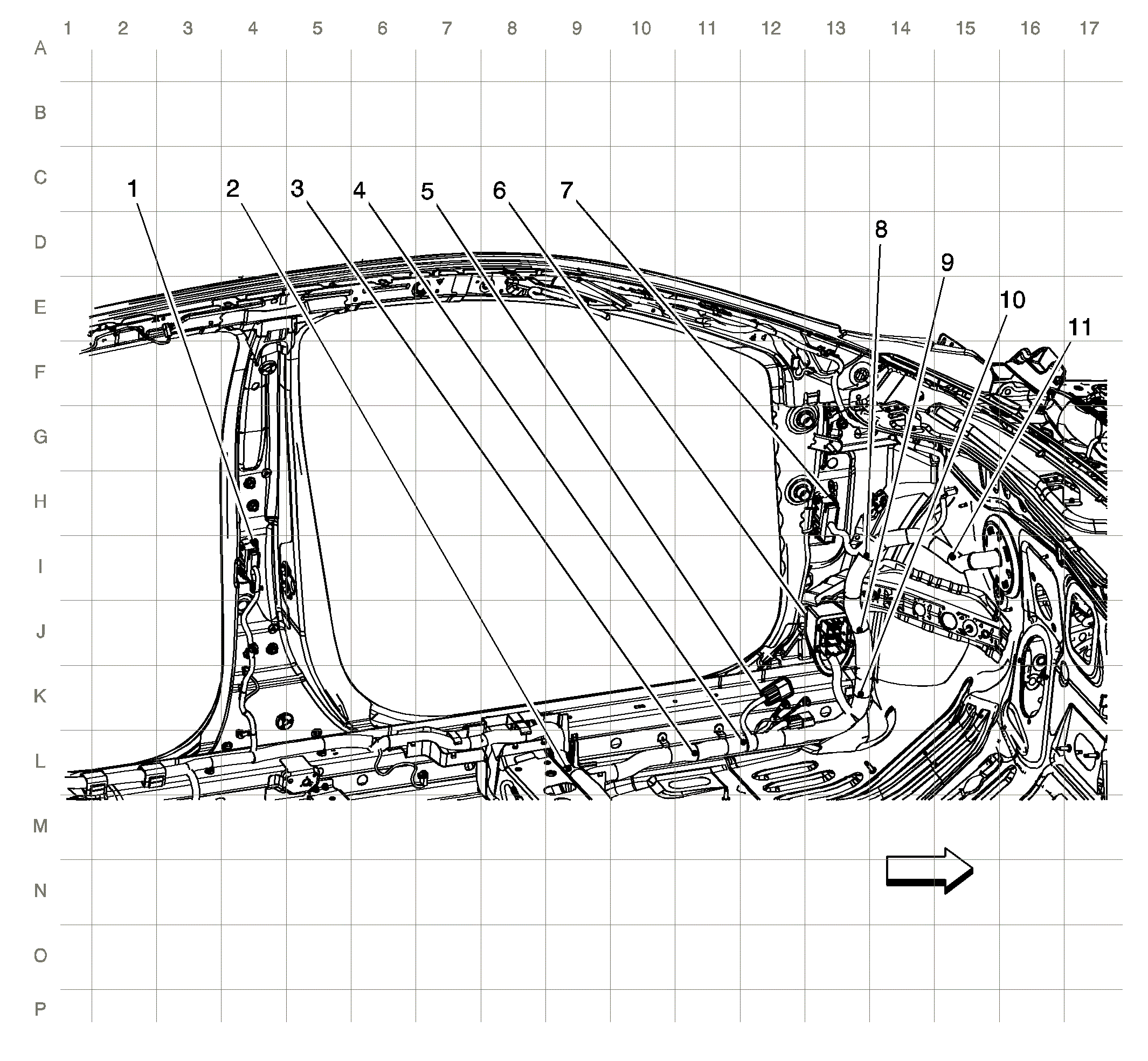

Fig 1: Body Harness Routing - Passenger Compartment - Left Front (HP4)
GM4230123Courtesy of GENERAL MOTORS COMPANY
Items
X700 X700 Left Rear Door Harness to Body Harness
J310
J309
J302
X211 X211 Instrument Panel Harness to Body Harness
X115 X115 Engine Harness to Body Harness ()
X500 X500 Driver Door Harness to Body Harness
J201
J202
J203
J200
