Body Harness Routing - Passenger Compartment - Left Front (- HP4)

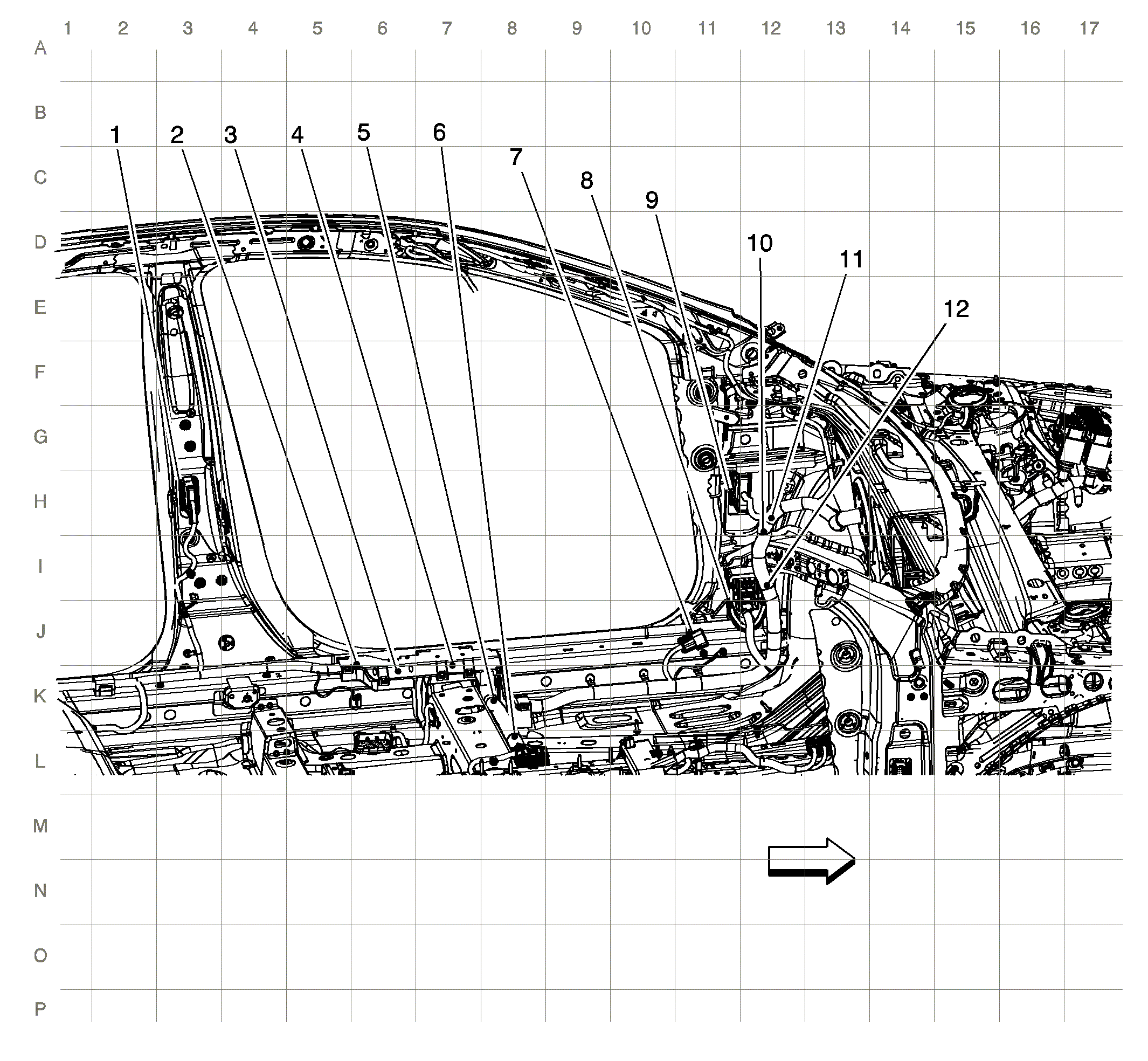

Fig 1: Body Harness Routing - Passenger Compartment - Left Front (- HP4)
GM4230124Courtesy of GENERAL MOTORS COMPANY
Items
X700 X700 Left Rear Door Harness to Body Harness
J325
J310
J309
J308
J324
X211 X211 Instrument Panel Harness to Body Harness
X210 X210 Instrument Panel Harness to Body Harness ()
X500 X500 Driver Door Harness to Body Harness
J202
J201
J203
