Body Harness Routing - Passenger Compartment - Front Floor (HP4)

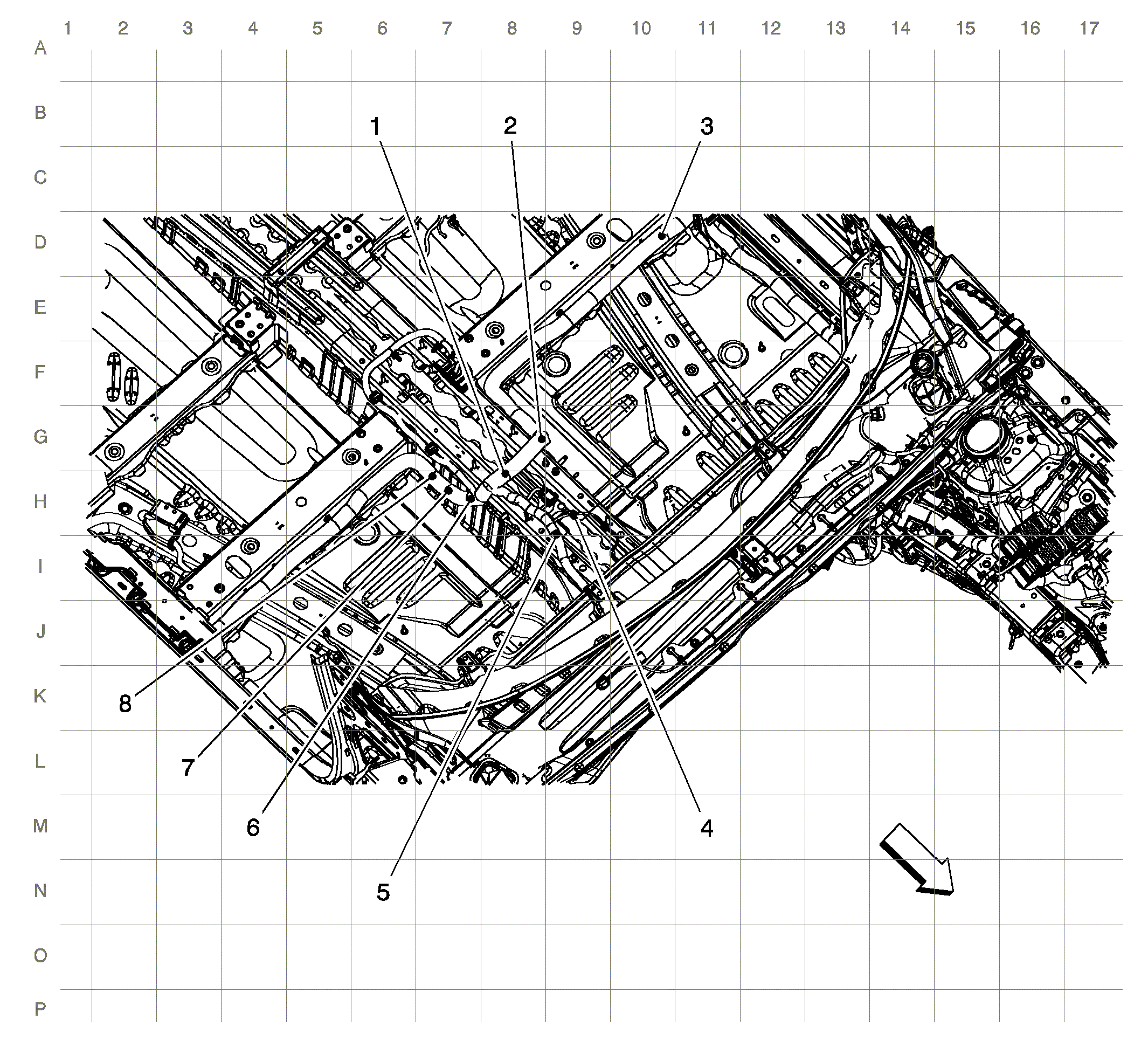

Fig 1: Body Harness Routing - Passenger Compartment - Front Floor (HP4)
GM4230126Courtesy of GENERAL MOTORS COMPANY
Items
J304
J303 (HP4)
J308
J301
J300
J311
J305
J306 (HP4)
