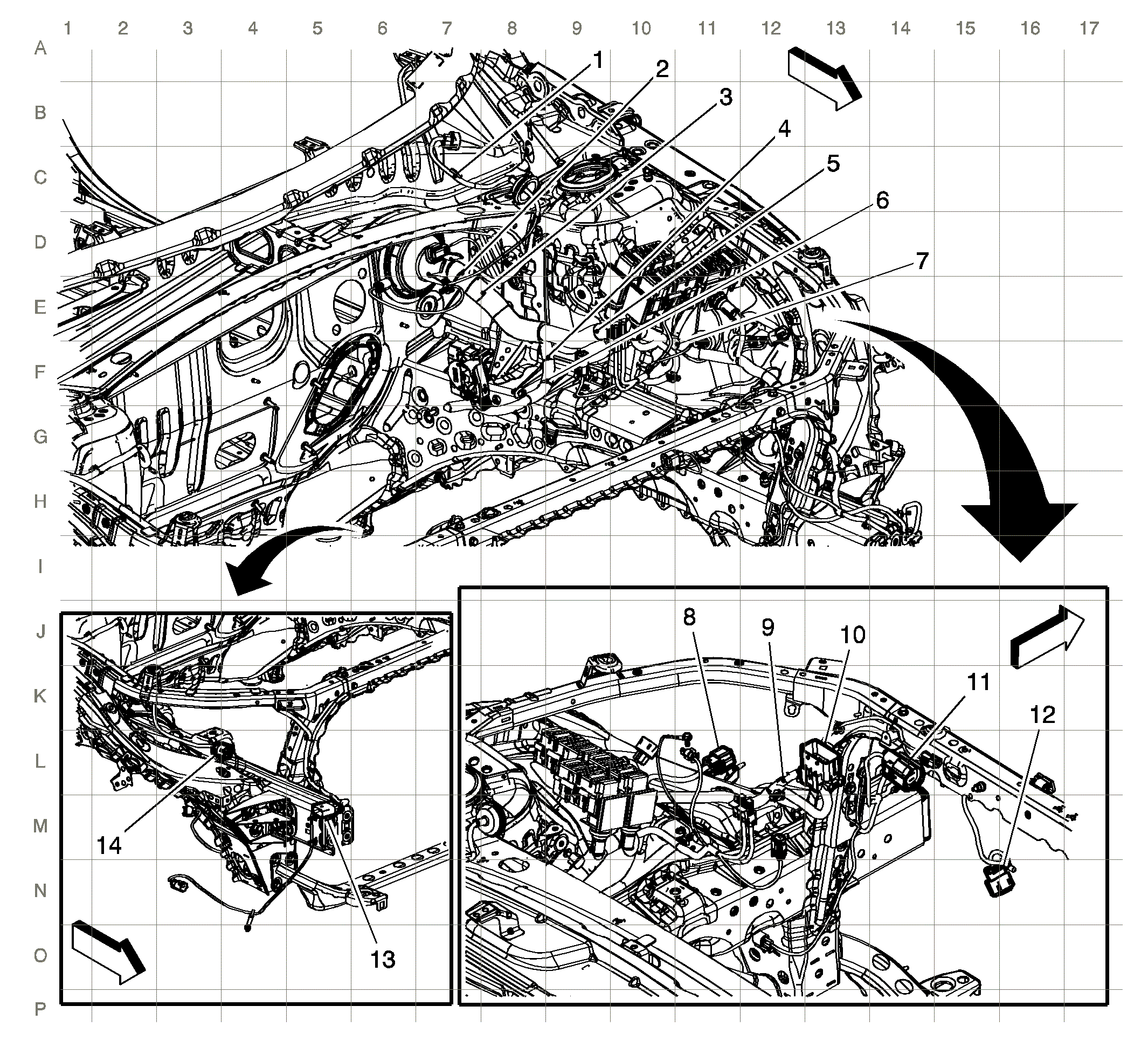

Body Harness Routing - Engine Compartment (- HP4)
| Items |
|---|
| J104 |
| J107 |
| J106 |
| J105 |
| J102 |
| J103 |
| J101 |
| X110 X110 Body Harness to Left Headlamp Harness () |
| J100 |
| X115 X115 Engine Harness to Body Harness () |
| X118 X118 Body Harness to Cooling Fan Harness |
| X119 (VRI) X119 Body Harness to Lower Grille Harness Harness (-VRI)X119 Body Harness to Lower Grille Harness (VRI) |
| X116 (UD5/UFQ) X116 Front Fascia Harness to Body Harness (-HP4) X116 Front Fascia Harness to Body Harness () |
| X120 X120 Body Harness to Right Headlamp Harness |
