Front Seat Cushion Outer Finish Cover Replacement (Power)

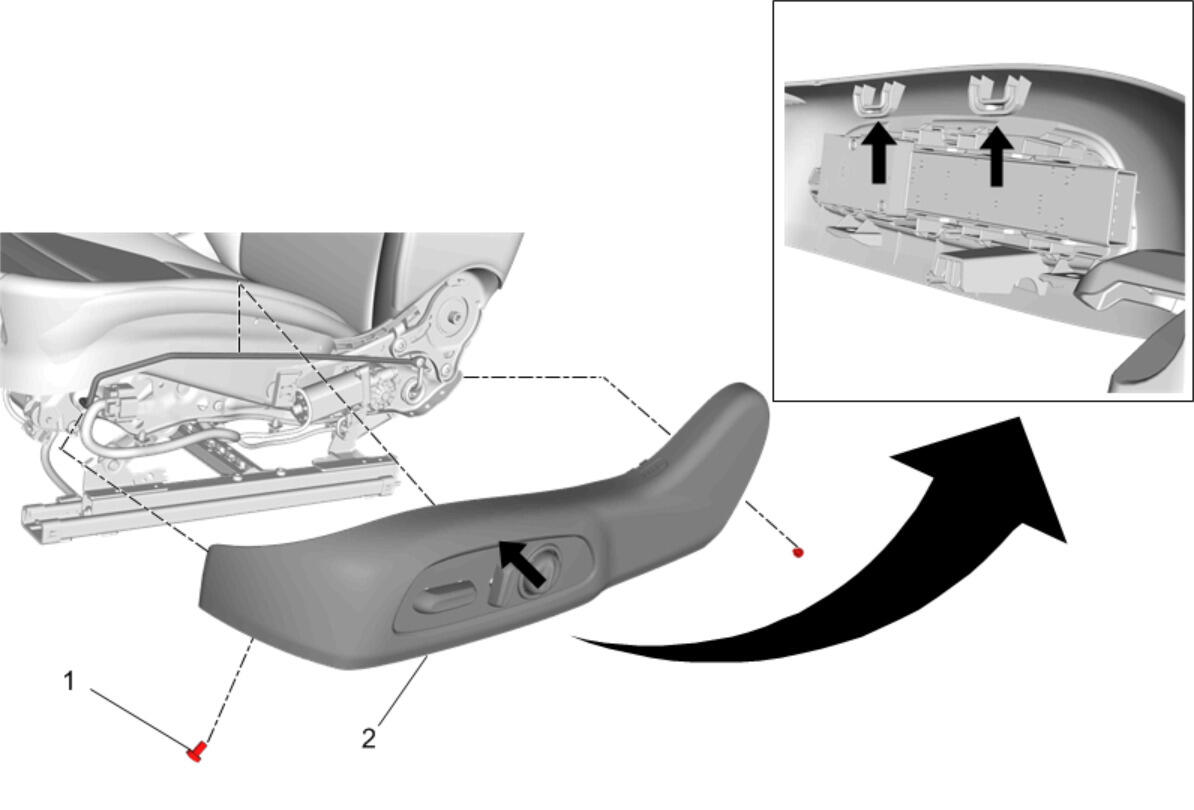

Fig 1: Front Seat Cushion Outer Finish Cover (Power)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Seat Cushion Outer Finish Cover Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Seat Cushion Outer Finish Cover Procedure Disconnect the outer finish cover from the inner finish cover. Press inward on the outer finish cover just above the switch to disengage the hooks from the retainer and lift upward to remove the outer finish cover. Disconnect the electrical connectors. NOTE: If the hooks are not fully disengaged, damage to the cover will occur.

Callout

Component Name

Front Seat Cushion Outer Finish Cover Fastener [2x]

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Front Seat Cushion Outer Finish Cover

Procedure

Disconnect the outer finish cover from the inner finish cover.
Press inward on the outer finish cover just above the switch to disengage the hooks from the retainer and lift upward to remove the outer finish cover.
Disconnect the electrical connectors.

NOTE: If the hooks are not fully disengaged, damage to the cover will occur.
