Driver or Passenger Seat Inner Adjuster Front Finish Cover Replacement

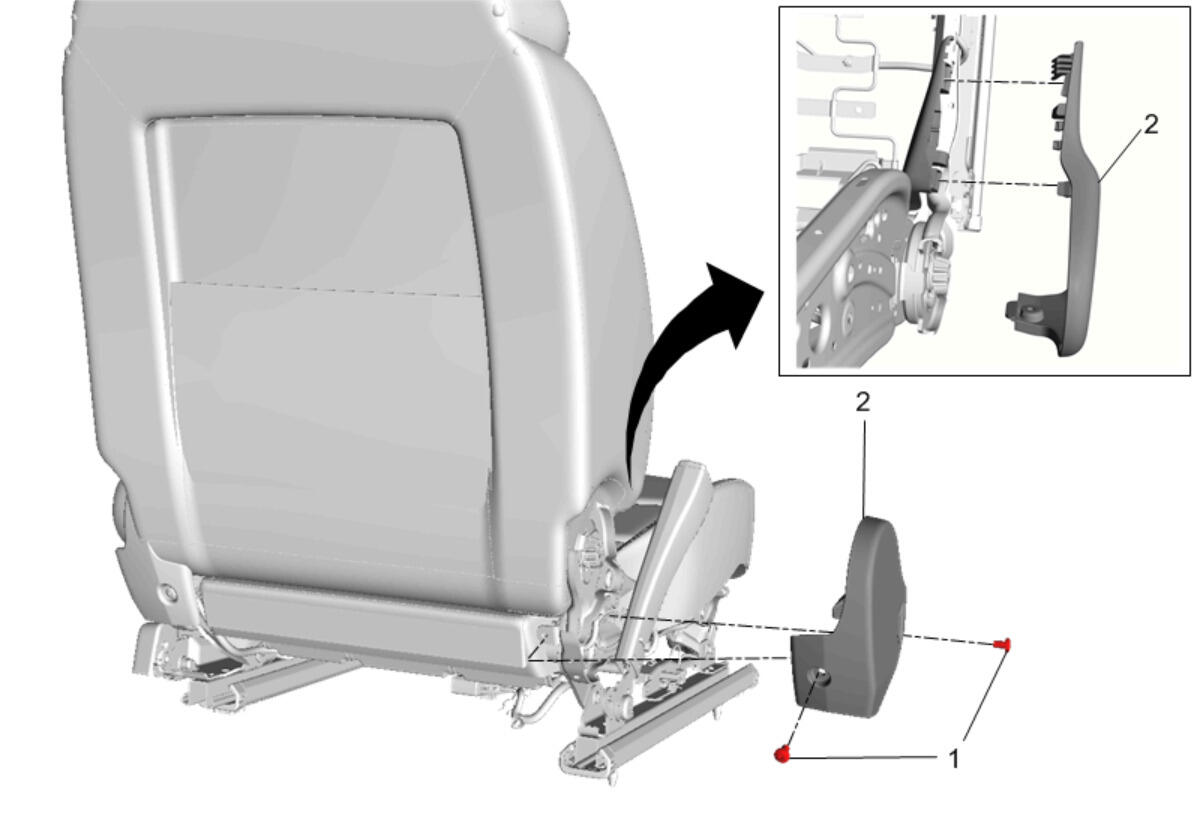

Fig 1: Driver or Passenger Seat Inner Adjuster Front Finish Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Driver or Passenger Seat Removal and Installation
1	Driver or Passenger Seat Inner Adjuster Front Finish Cover Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Driver or Passenger Seat Inner Adjuster Front Finish Cover Procedure  Use a suitable tool to separate the seat inner adjuster front finish cover.
