Underbody Rear Air Deflector Replacement - Right Side (XFE)

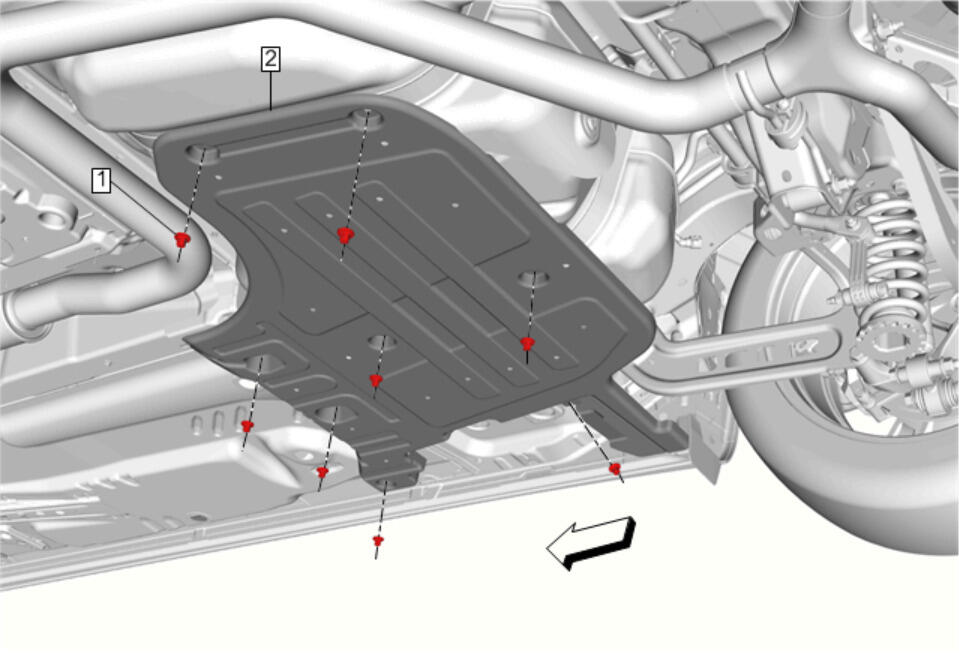

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle |
|
| 1 | Underbody Rear Air Deflector Nut [8x]
CAUTION:
Refer to Fastener Caution Tighten 3 N.m (27 lb in) |
| 2 | Underbody Rear Air Deflector - Right Side |
