Steering Column Lower Trim Cover Replacement

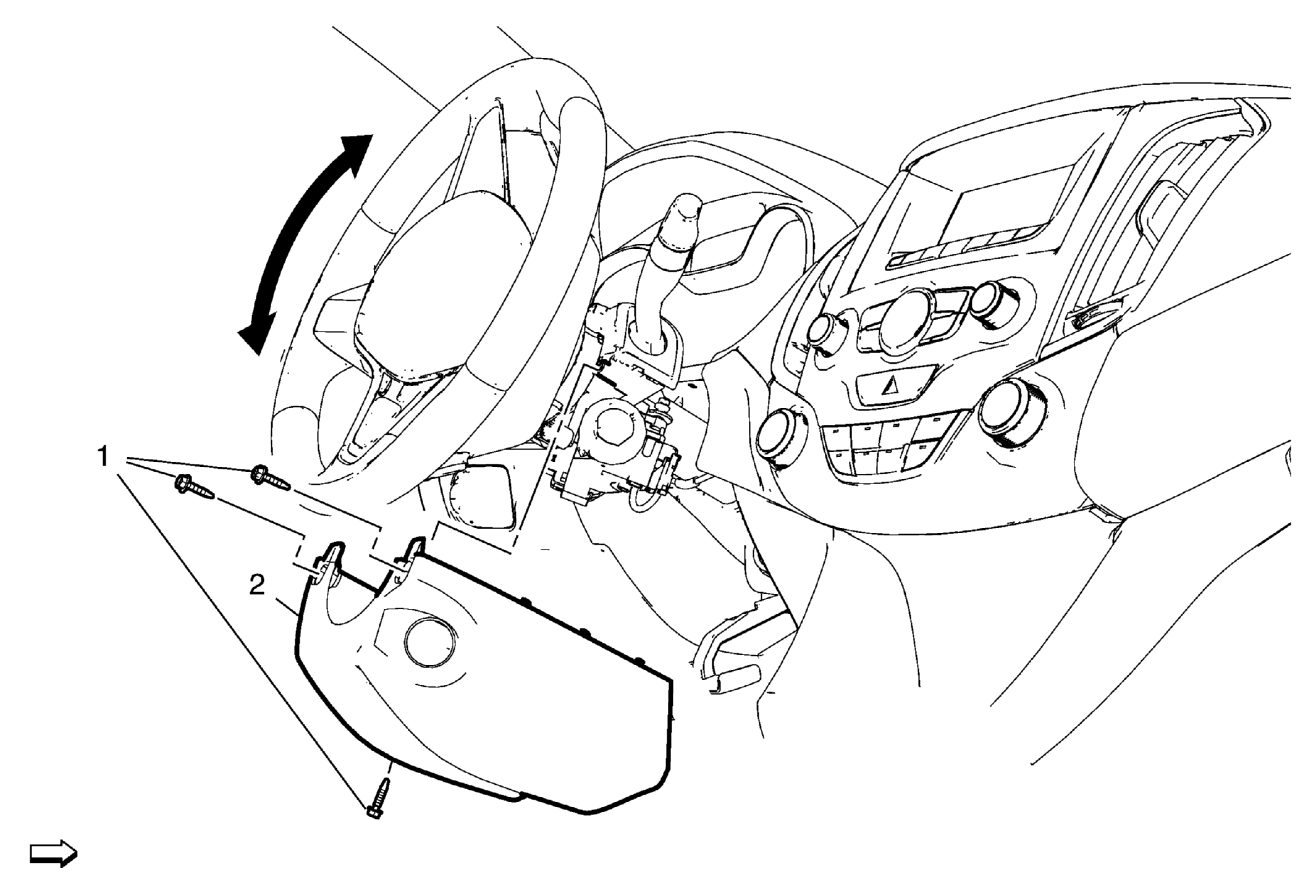

Fig 1: Steering Column Lower Trim Cover
GM3653358Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Reposition Steering Column Upper Trim Cover Replacement
1 Steering Column Lower Trim Cover Fastener (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Procedure
Rotate the steering wheel to access the upper fasteners.
Tighten
2.5 N.m (22 lb in)
2 Steering Column Lower Trim Cover
