Instrument Cluster Replacement

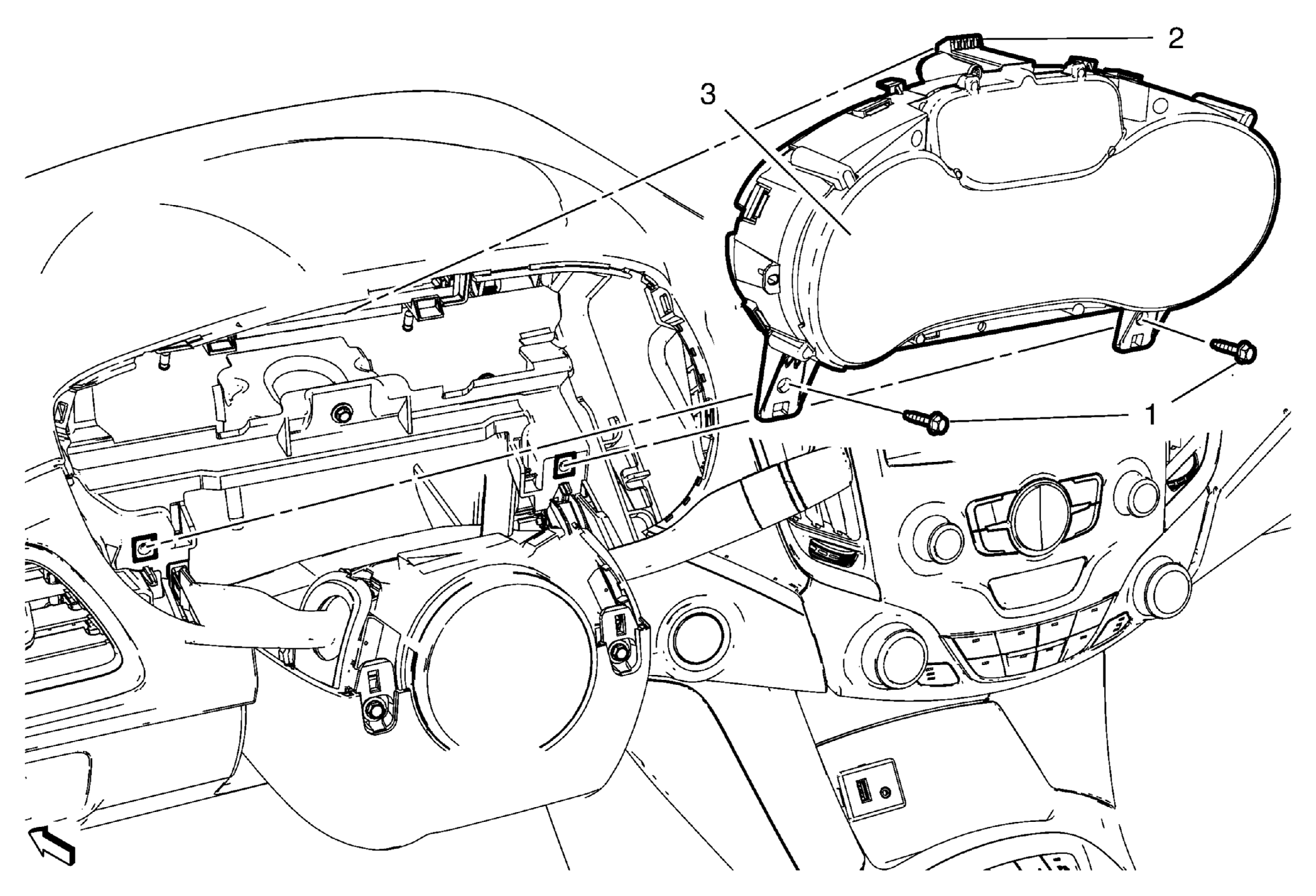

Fig 1: Instrument Cluster
GM3680303Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Cluster Trim Plate Replacement
1 Instrument Cluster Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Instrument Cluster Retainer
3 Instrument Cluster

Procedure

  1. Disconnect all electrical connectors.
  2. Control Module References
