Front Floor Console Trim Plate Replacement (Manual Transmission)

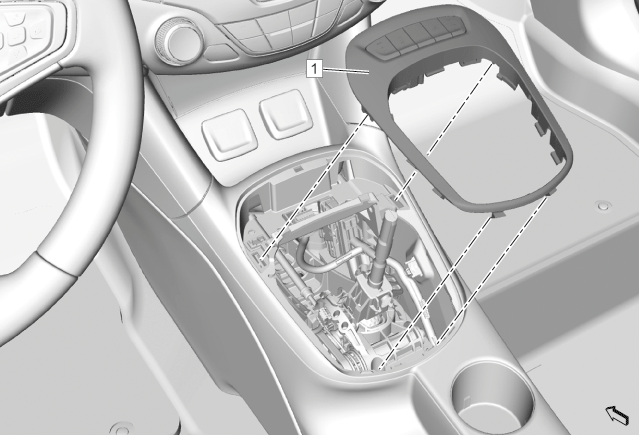

Fig 1: Front Floor Console Trim Plate (Manual Transmission)
GM4297771Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Transmission Control Lever Knob Replacement
1 Front Floor Console Trim Plate

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Remove Accessory Switch Replacement
