Front Floor Console Trim Plate Replacement (Automatic Transmission)

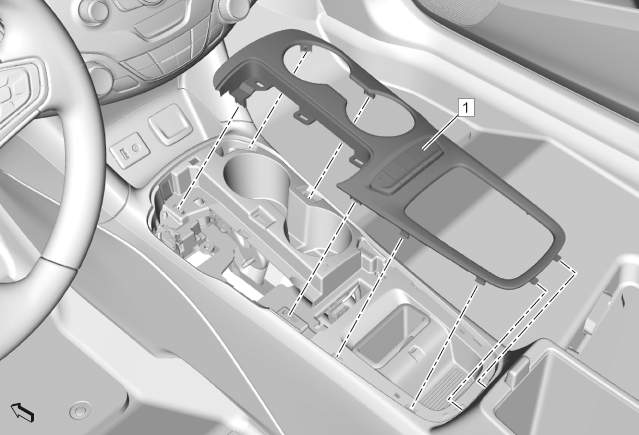

Fig 1: Front Floor Console Trim Plate (Automatic Transmission)
GM4297769Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Transmission Control Lever Knob Replacement
1 Front Floor Console Trim Plate

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Remove Accessory Switch Replacement
  3. Transfer parts as necessary.
