Front Bumper Fascia Extension Replacement (with Front Bumper Shutter)

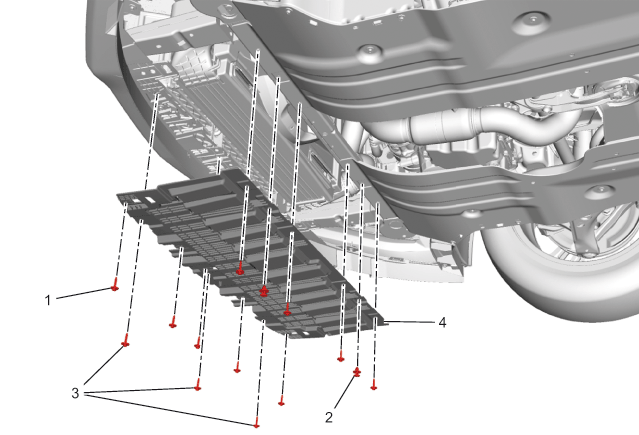

Fig 1: Front Bumper Fascia Extension (with Front Bumper Shutter)
GM4421741Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Bumper Fascia Extension Bolt (Qty: 9)
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Front Bumper Fascia Extension Retainer (Qty: 2)
3 Front Bumper Fascia Extension Bolt (Qty: 3)
Tighten
2.5 N.m (22 lb in)
4 Front Bumper Fascia Extension
