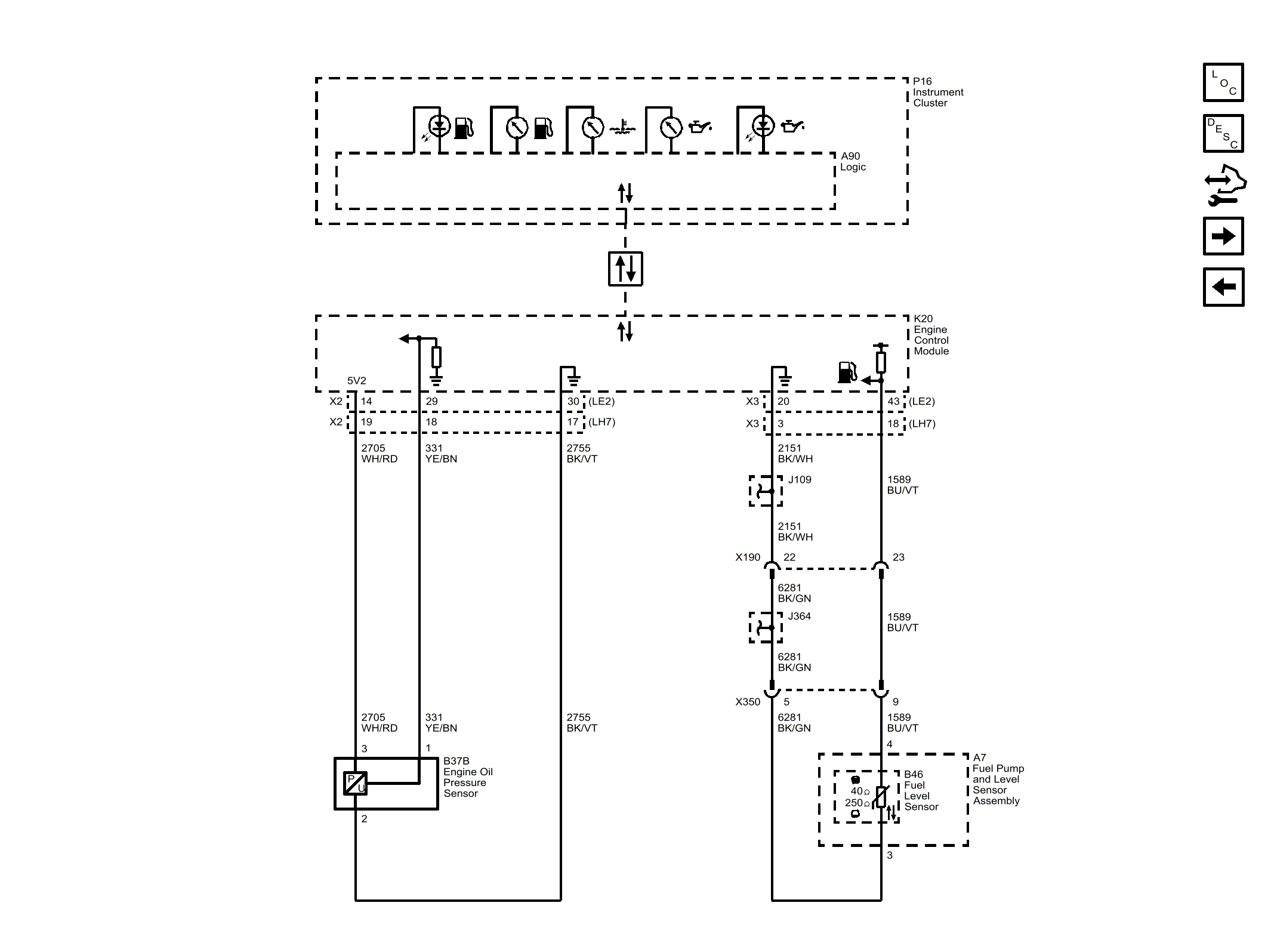

Home >> Chevrolet >> 2017 >> Cruze LS, Standard Trans >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Engine Oil Pressure Control and Gauges
