Instrument Panel Trim Pad Replacement - Right Side

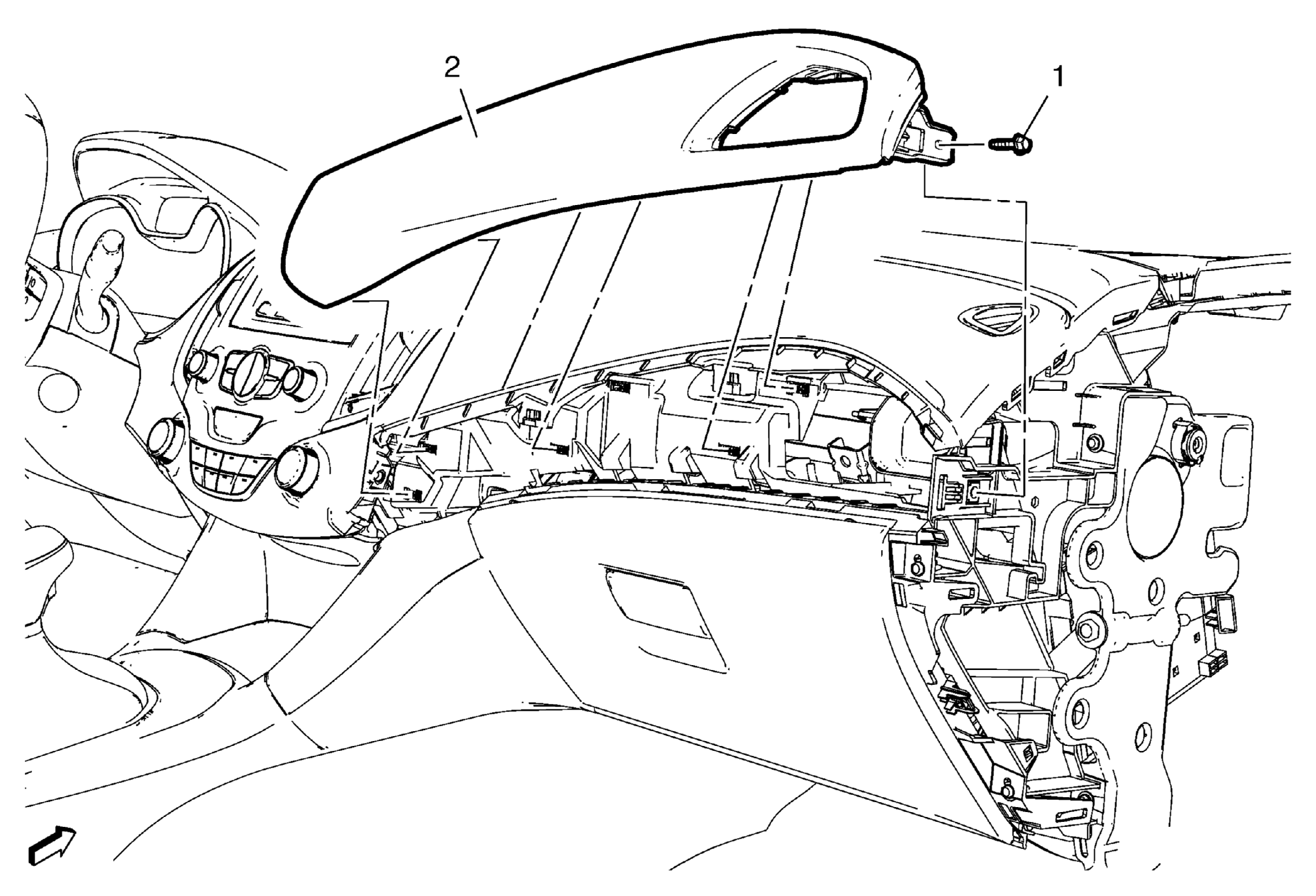

Fig 1: Instrument Panel Trim Pad - Right Side
GM3657243Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Outer Trim Cover Replacement - Right Side
1 Instrument Panel Trim Pad Fastener
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Instrument Panel Trim Pad
Procedure
Remove Instrument Panel Outer Air Outlet - Right Side -Instrument Panel Outer Air Outlet Replacement - Right Side
