Tire and Wheel Removal and Installation

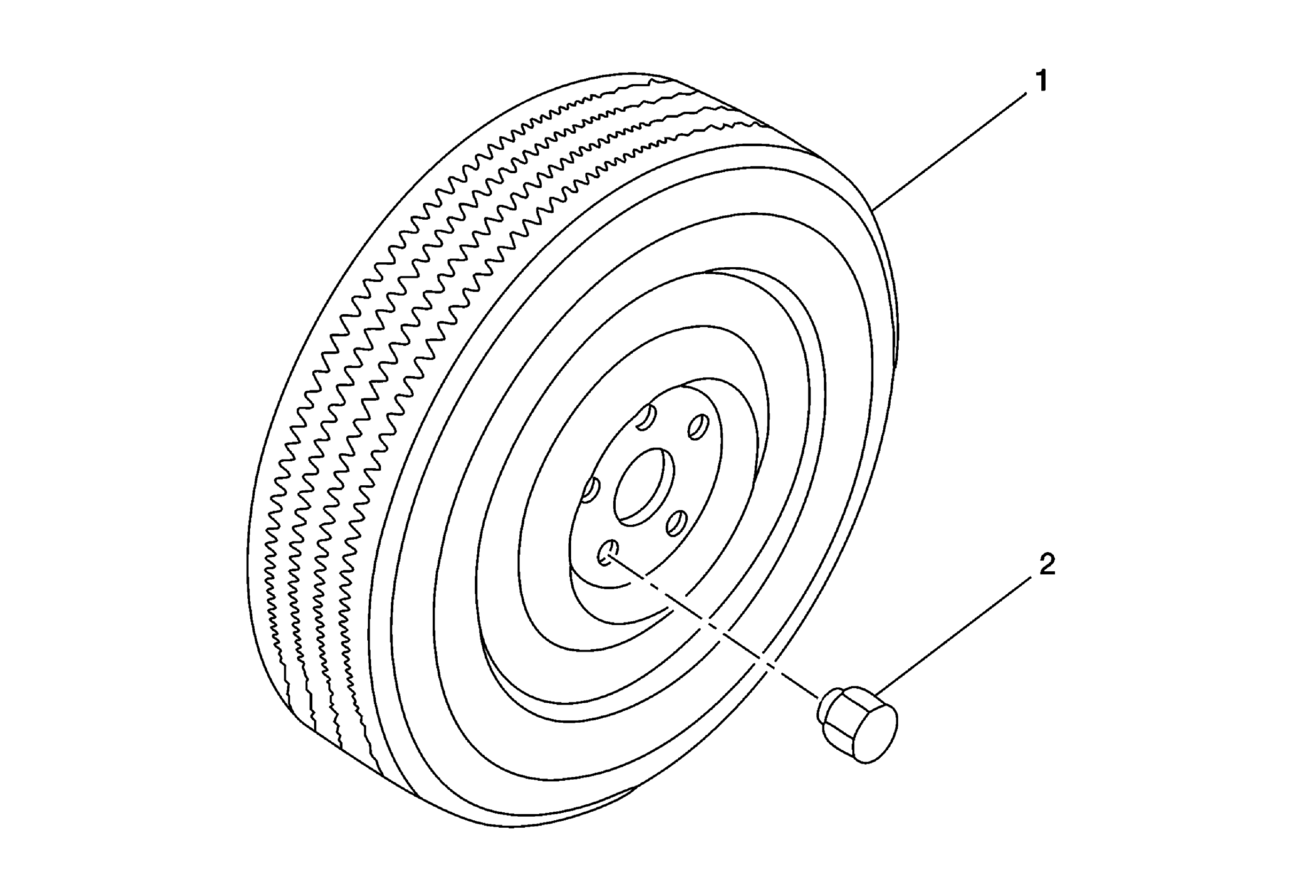

Fig 1: Tire And Wheel Replacement Components With Torque Specifications

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Wheel and Tire
2	Wheel Nut CAUTION: Refer to Fastener Caution . Tighten  113 N.m (83 lb ft)
