Engine Compartment Lower Noise Shield Replacement

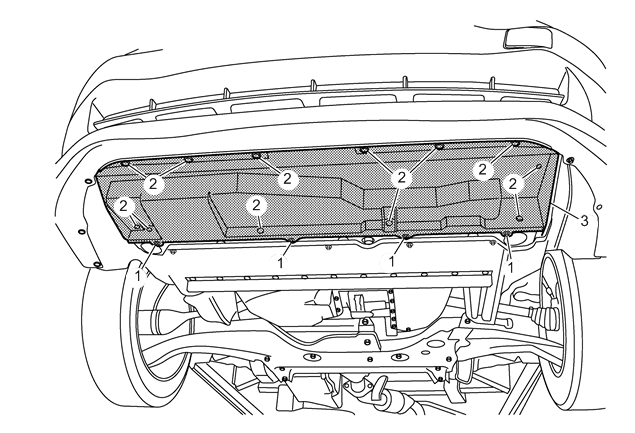

Fig 1: Engine Compartment Lower Noise Shield With Torque Specifications

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Refer to Lifting And Jacking The Vehicle .
1	Bolt (4x) CAUTION: Refer to Fastener Caution . Tighten  5.5 N.m (49 lb in)
2	Clip (12x)
3	Engine Compartment Lower Noise Shield
