Hood Replacement

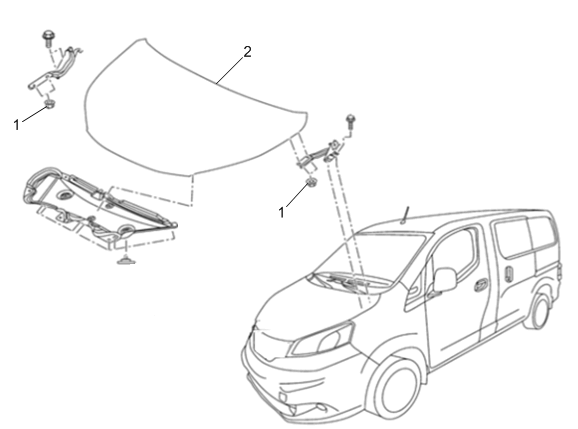

Fig 1: Hood Replacement Components With Torque Specifications

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
1	Hood Hinge Nut [4x] CAUTION: Refer to Fastener Caution . Tighten 13.5 N.m (10 lb ft)
2	Hood Procedure Disconnect any electrical connectors before removing. With the aid of an assistant remove the hood. Transfer components as necessary. Adjust if necessary. Hood Adjustment

Callout

Component Name

WARNING:

When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Hood Hinge Nut [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
13.5 N.m (10 lb ft)

Hood

Procedure

Disconnect any electrical connectors before removing.
With the aid of an assistant remove the hood.
Transfer components as necessary.
Adjust if necessary. Hood Adjustment
