Instrument Cluster Replacement

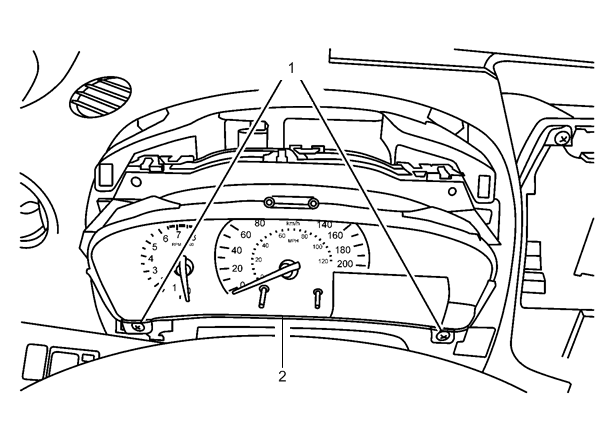

GM3910814

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Battery Negative Cable Disconnection and Connection - Disconnect
Instrument Cluster Cover Replacement - Remove

1

Instrument Cluster Screw [2x]

CAUTION:

Refer to Fastener Caution .

2

Instrument Cluster

Procedure

Pull the instrument cluster straight out to release the clips.
Electrical Connector - Disconnect
Perform all necessary programming and setup procedures for the control module:Control Module References
