Instrument Cluster Lens Replacement

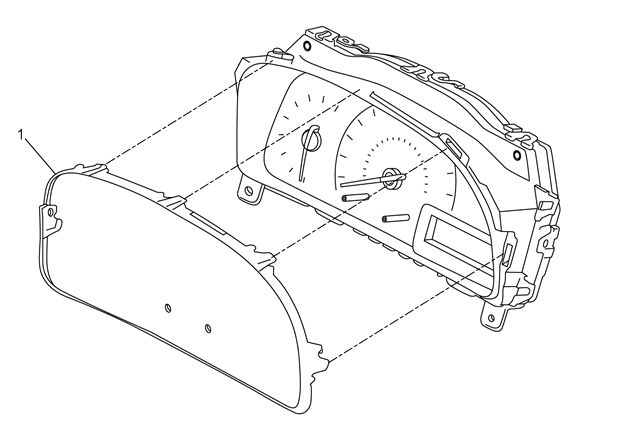

GM3914221Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Cluster Replacement
1 Instrument Cluster Lens

Procedure

  1. Release the retainers holding the instrument cluster lens to the instrument cluster.
  2. Pull the instrument cluster lens straight out and remove.
