Transmission Electronic Control Replacement

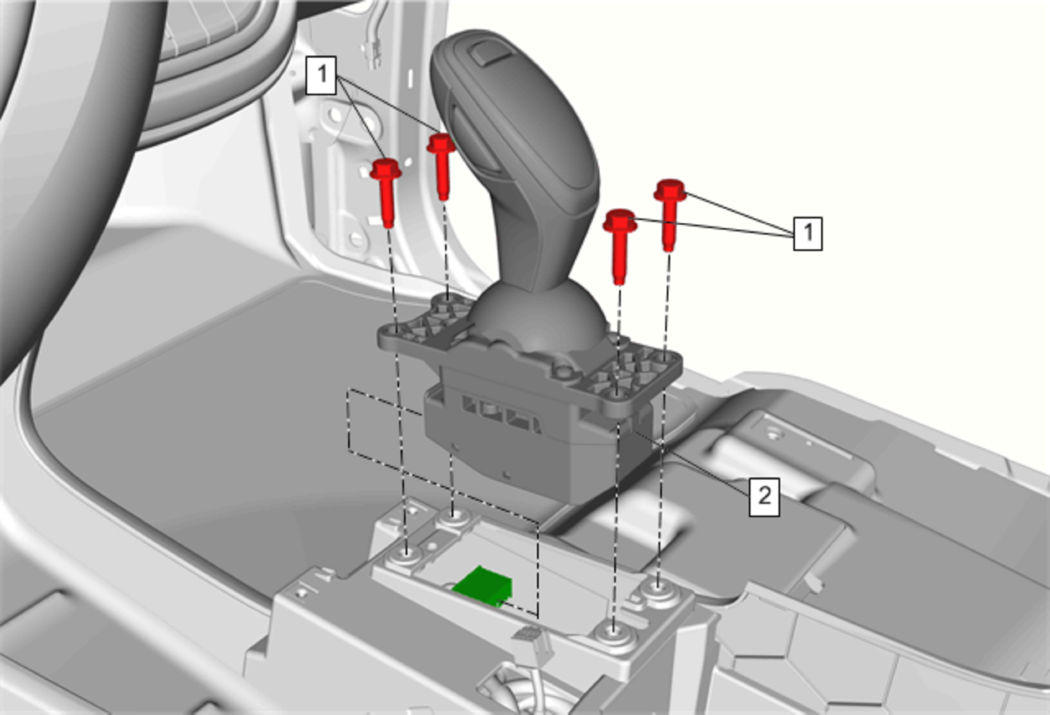

Fig 1: Transmission Electronic Control

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection Remove Front Floor Console Cup Holder. Refer to Front Floor Console Cup Holder Replacement
1	Automatic Transmission Electronic Control Bolt (Qty: 4) CAUTION: Refer to Fastener Caution Tighten 9 N.m (80 lb in)
2	Automatic Transmission Electronic Control Procedure Disconnect the electrical connector. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
Remove Front Floor Console Cup Holder. Refer to Front Floor Console Cup Holder Replacement

Automatic Transmission Electronic Control Bolt (Qty: 4)

CAUTION:

Tighten
9 N.m (80 lb in)

Automatic Transmission Electronic Control

Procedure

Disconnect the electrical connector.
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
