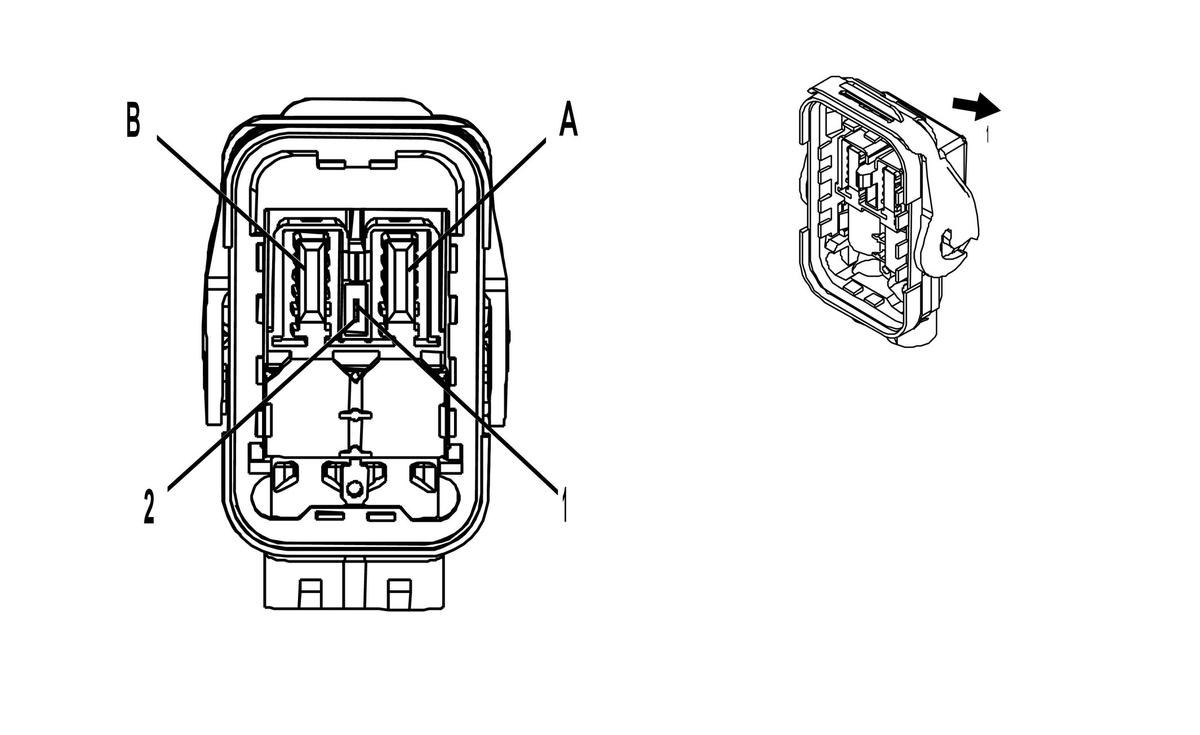

X21 Manual Service Disconnect Receptacle X3
|
|
Connector Part Information
- Harness Type: Battery Disconnect
- OEM Connector: 13584040
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F Power Pack 2000 Series, Sealed
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
VT |
5087 |
High Voltage Interlock Loop Signal 1 |
I |
- |
| 2 |
- |
BK/BN |
5088 |
High Voltage Interlock Loop Low Reference 1 |
I |
- |
| A - B |
- |
- |
- |
Not Occupied |
- |
- |
