Liftgate Lower Trim Finish Panel Replacement

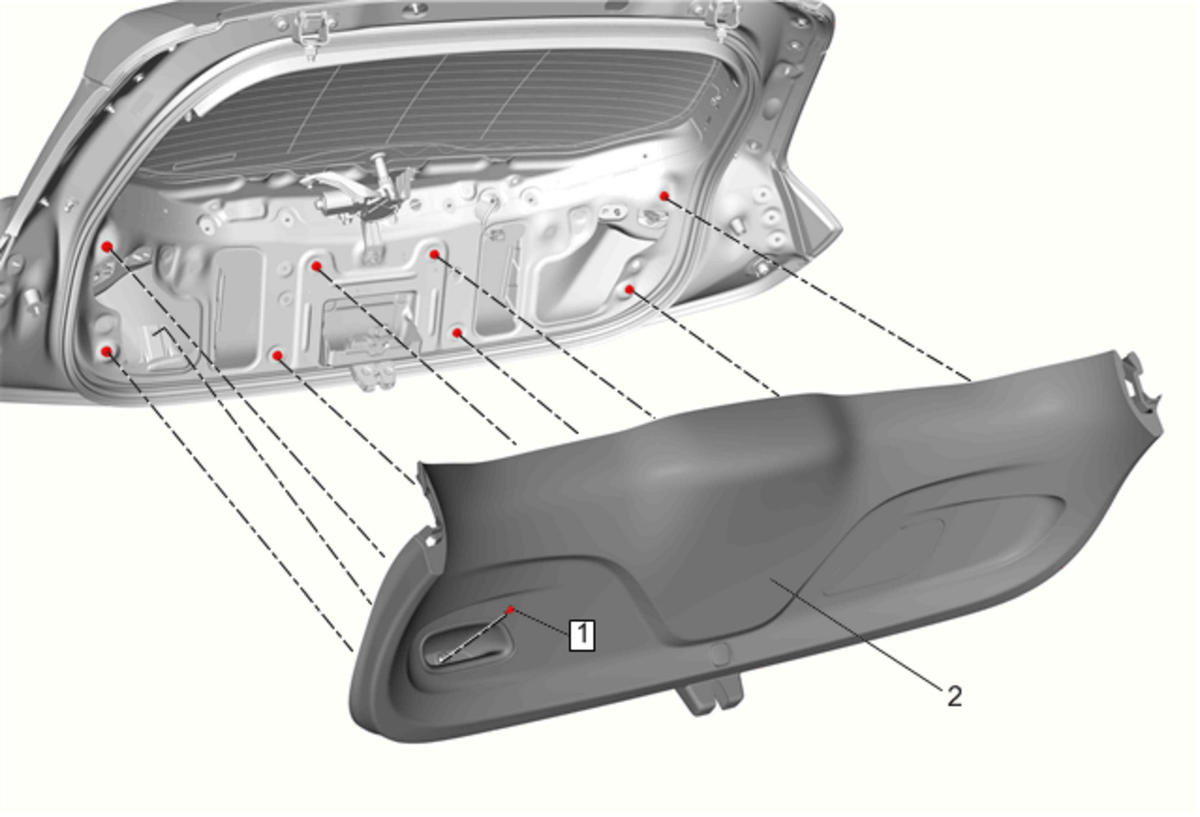

Fig 1: Liftgate Lower Trim Finish Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate upper side trim finish panel. Liftgate Upper Side Trim Finish Panel Replacement .
1	Liftgate Inside Pull Handle Fastener CAUTION: Fastener Caution Tighten 1.8 N.m (16 lb in)
2	Liftgate Lower Trim Finish Panel Procedure Use a trim panel removal tool to aid in the removal of the trim panel from the liftgate assembly. Start at the top clip on the right-hand side of liftgate lower trim finish panel.

Callout

Component Name

Preliminary Procedure
Remove the liftgate upper side trim finish panel. Liftgate Upper Side Trim Finish Panel Replacement .

Liftgate Inside Pull Handle Fastener

CAUTION:

Tighten
1.8 N.m (16 lb in)

Liftgate Lower Trim Finish Panel

Procedure

Use a trim panel removal tool to aid in the removal of the trim panel from the liftgate assembly.
Start at the top clip on the right-hand side of liftgate lower trim finish panel.
