Hood Insulator Replacement

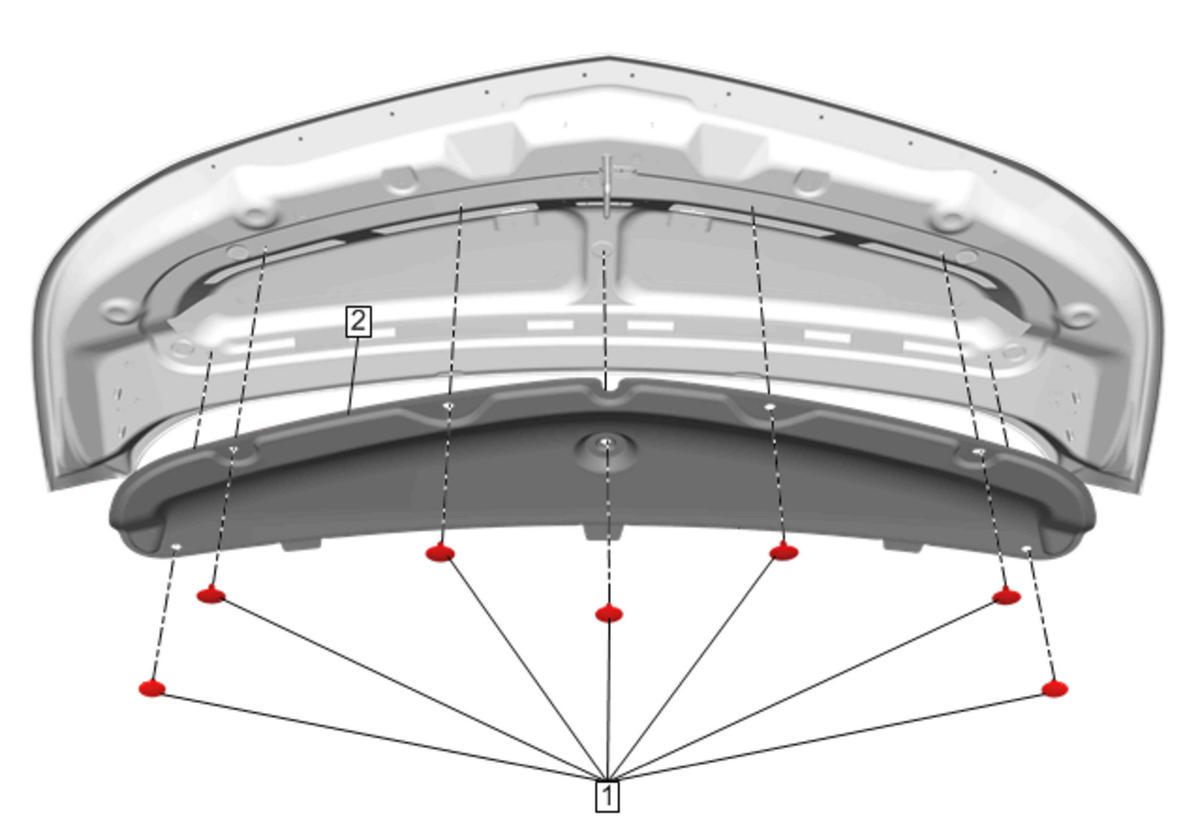

Fig 1: Hood Insulator
GM4629847Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Open the hood.
1 Hood Insulator Retainer (Qty: 7)
Procedure
Using a suitable flat-bladed tool, remove the hood insulator retainers.
2 Hood Insulator
