Chevrolet
>>
2017
>>
Bolt EV Premier
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Instrument Panel System Displays And Gauges
>>
Schematic Wiring Diagrams
>>
Instrument Cluster Wiring Schematics
>>
Power, Ground, Serial Data, and Subsystem References
Power, Ground, Serial Data, and Subsystem References

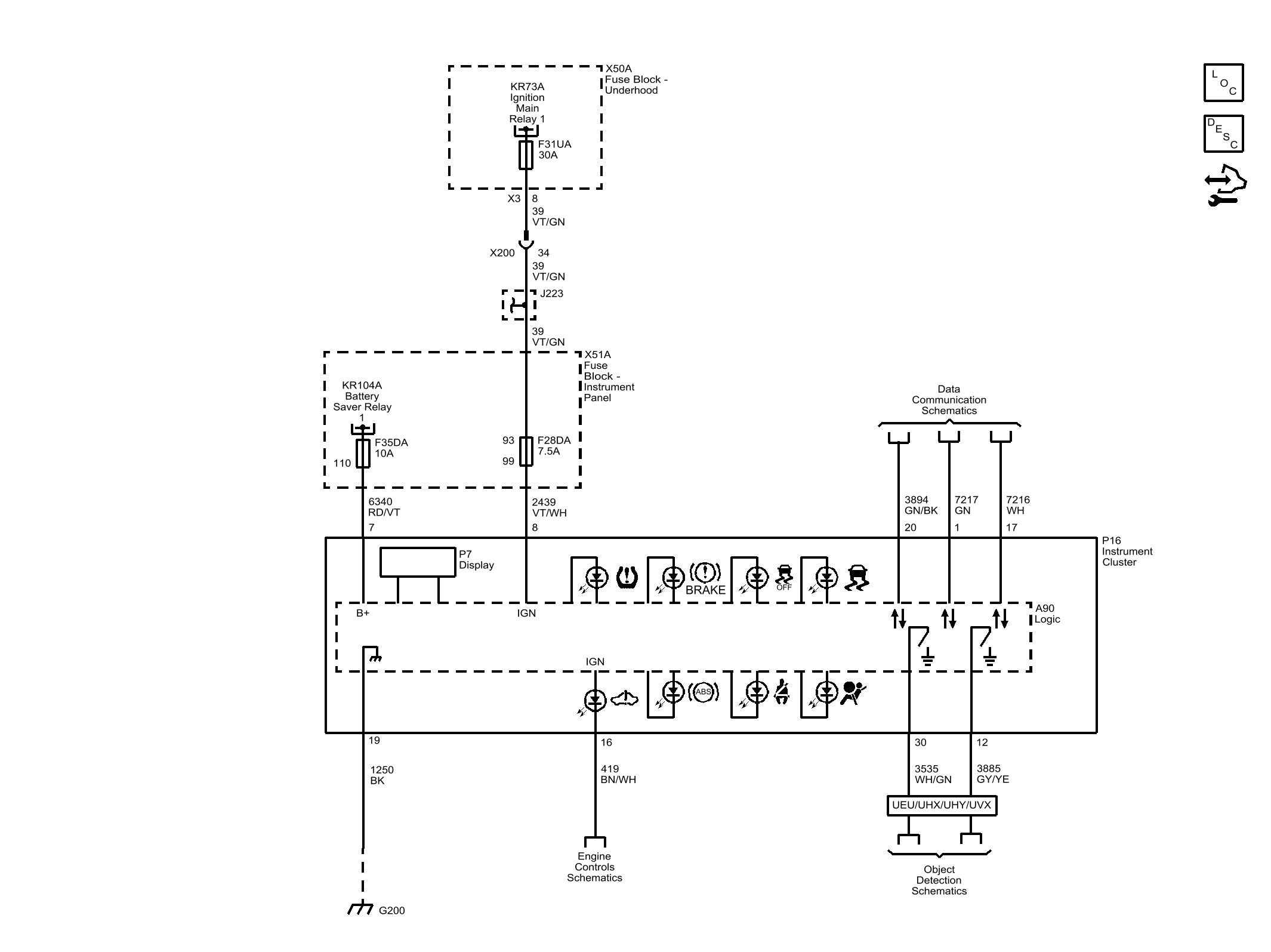

Fig 1: Power, Ground, Serial Data, and Subsystem References
