Ambient Air Temperature Sensor Replacement

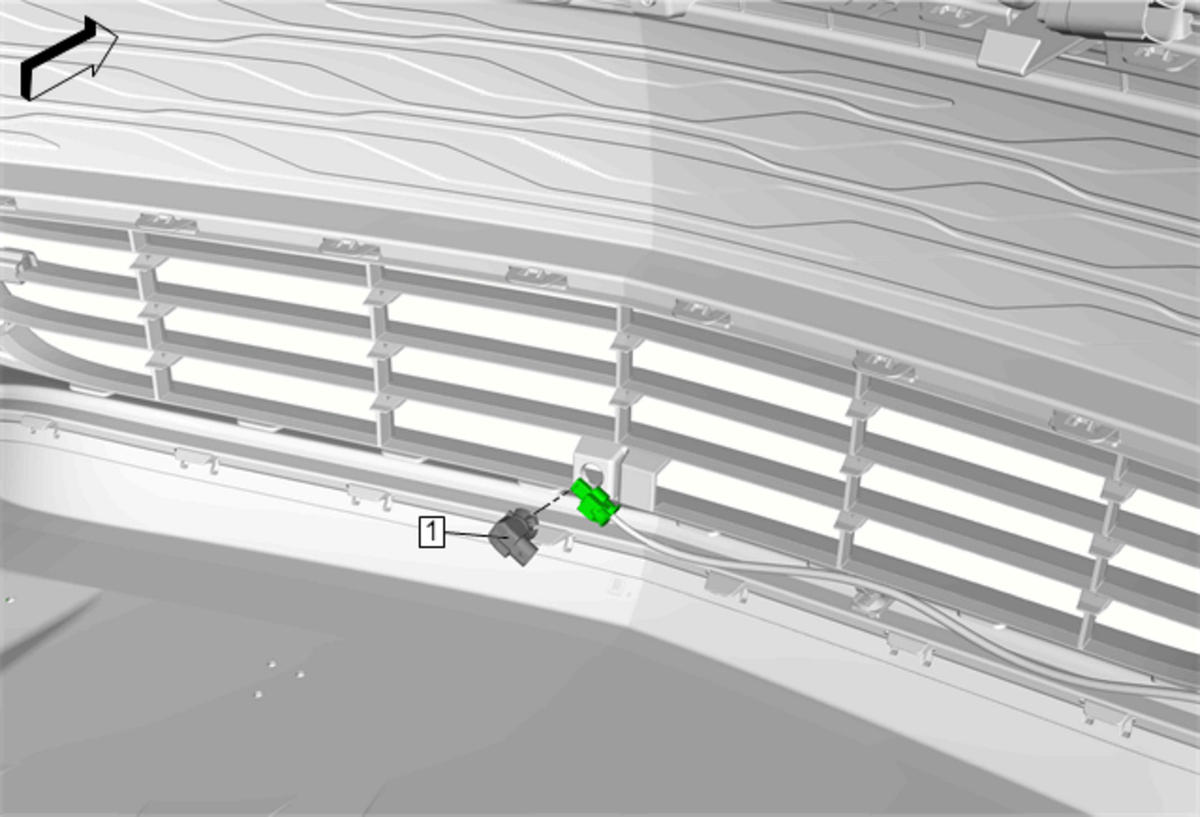

Fig 1: Ambient Air Temperature Sensor
GM4533264Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Replacement (North America)Front Bumper Fascia Replacement (Europe, Korea)
1 Ambient Air Temperature Gauge Sensor

Procedure

  1. Disconnect the electrical connectors.
  2. Unlock the retaining tabs.
