Battery Negative Cable Disconnection and Connection

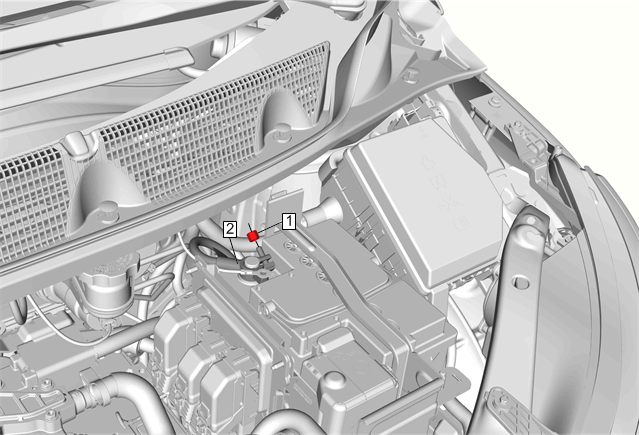

Fig 1: Battery Negative Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Turn the ignition OFF. Disconnect and remove all 12V battery chargers and the AC charger cable from the hybrid battery charger receptacle.
1	Battery Negative Cable Fastener WARNING: Refer to Battery Disconnect Warning CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Battery Negative Cable

Callout

Component Name

Preliminary Procedures

Turn the ignition OFF.
Disconnect and remove all 12V battery chargers and the AC charger cable from the hybrid battery charger receptacle.

Battery Negative Cable Fastener

WARNING:

CAUTION:

Tighten
5 N.m (44 lb in)

Battery Negative Cable
