Front Seat Heater Vent Control Module Replacement

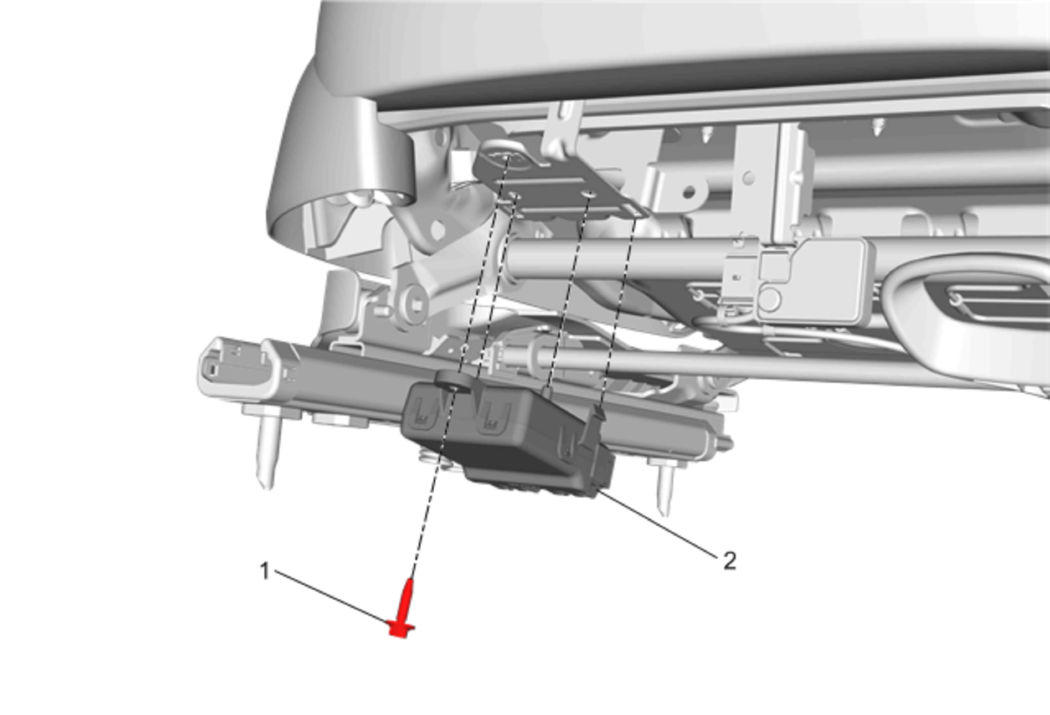

Fig 1: Front Seat Heater Vent Control Module
GM4538005Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Seat Heater Control Module Fastener
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Front Seat Heater Control Module

Procedure

  1. Adjust the seat to be in the full up position.
  2. Disconnect the electrical connectors.
